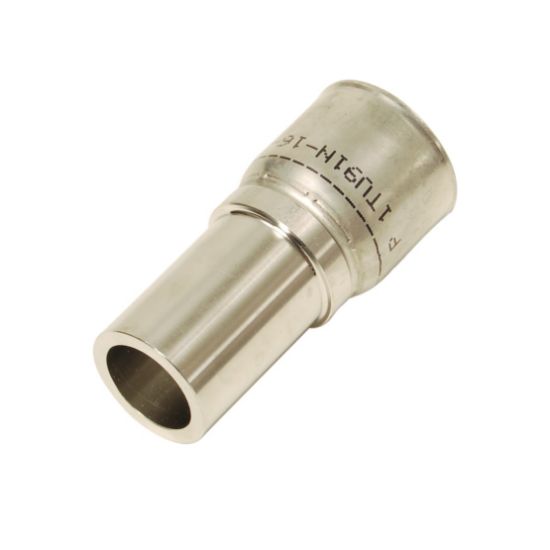

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

1TU91N-4-4C - Permanent Fittings for PTFE Hose - 91/91N

Name: 1TU91N-4-4C - Permanent Fittings for PTFE Hose - 91/91N
SKU: 1TU91N-4-4C
Price: 42.34 USD
Availability: InStock

Parker's 91/91N Series fittings are used with 919/919B, 919J, 919U, 929/929B, and 929BJ PTFE hoses from the Parflex division.

Availability:

26 in stock

Kansas City, KS	21
Wichita, KS	3
Decatur, IL	2

Partner Available:

180 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 1TU91N-4-4C

$42.34/each

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Hose I.D. (inch)	3/16"
Length (inch)	1.63"	Connection 2 Size	1/4"
Product Style	Universal Tube Stub	Connection 2 Type	Male
Specifications Met	N/A	Hex Size	n/a
Hex Size 1	n/a	Configuration	Hose to Port
Connection 1 Type	Hose	Maximum Operating Pressure	3000 psi (Dependent on hose)
Tube Outside Diameter	1/4 inch	For Fluid Type	Air (Pneumatic Media)
Coating	n/a	Industry	Healthcare & Life Sciences
Body Material	n/a	Connection 1 Size	4.8 mm
Fitting Length	1.63 inch (see drawing legend A)	Dimensional Weight	0.054 lb
Connection Length	1-1/16 inch Cut-off allowance (see drawing legend B)	Shape	Stub End
Connection 2 Size	1/4 inch Thread
