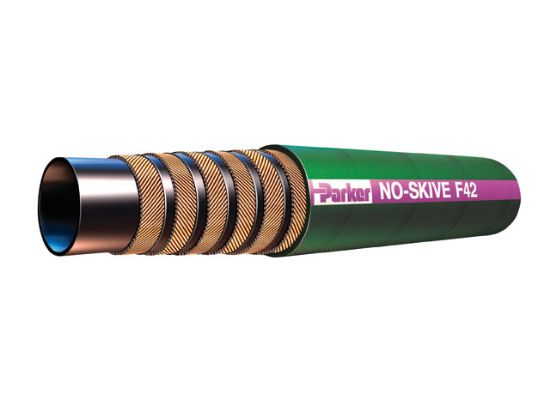

F42-12 - Phosphate-Ester Hose 6000 PSI - F42 Hose

Parker's F42 hose is a phosphate-ester compatible hose that has a constant working pressure of 6000 PSI in all sizes and is specifically designed to resist aggressive airline hydraulic fluids.

Availability:	Backordered Estimated Lead Time: 36 days
Partner Available:	256 in stock

SKU F42-12

$67.80/foot

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (size)	-12
Maximum Operating Temperature	80 °C	Minimum Operating Temperature	-40 °C
Cover Material	Ethylene Propylene Diene Monomer (EPDM)	Cover Color	Green
Inside Diameter	3/4 inch	Nominal Hose Inside Diameter	19 mm
Media	Petroleum Hydraulic Fluids	Weight	1.53 kg/m
Hose Inner Tube Material	Ethylene Propylene Diene Monomer (EPDM)	Hose Reinforcement Material	4 or 6 Spirals of Steel Wire
Compatible Fitting	79 Series	Maximum Operating Pressure	42 MPa
Outside Diameter	31.9 mm	Minimum Bend Radius	10.5 inch
Inner Diameter	0.75 Inch	Pkg Qty	140
UOM	FT	Material	Rubber
Pkg Qty/UOM	140 FT	Working Pressure	6000 PSI (410 bar)
Mating Fitting Series	79	Parker Group	Fluid Connector
Inch/Metric	Inch	Parker Division	Hose Products
Inner Diameter	0.75 Inch	Inner Diameter Inch/mm	Inch
Material	Rubber	Application	Hydraulic
Working Pressure Range	> 5000 PSI (345 bar)	Hose Pressure Range	Medium
Hose Category	Hydraulic – Phosphate-Ester	Series	F42
Mating End Fitting Series	79
