*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

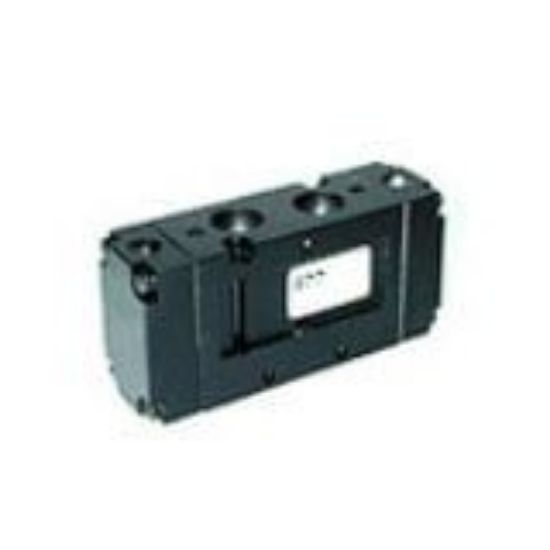

PHP520D-02

Availability:	Backordered Estimated Lead Time: 54 days
Partner Available:	Backordered

SKU PHP520D-02

$232.48/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Number of Positions	2 Position Double Remote Air
Port Size	1/4 Inch	Media	Air
Pressure Rating	22 to 130 psi	Minimum Operating Temperature	41 °F
Mounting Option	Inline	Valve Type	2-Way
Maximum Operating Temperature	160 °F	Override Functionality	Non-Lock (Standard), Lever-Lock (Option)
Actuation Type	Air Operated	Lubricant	Non-Lubricated or Lubricated Air
Flow Coefficient	1 Cv	Number of Ports	5
Port Type	PT	Seal Material	Nitrile
