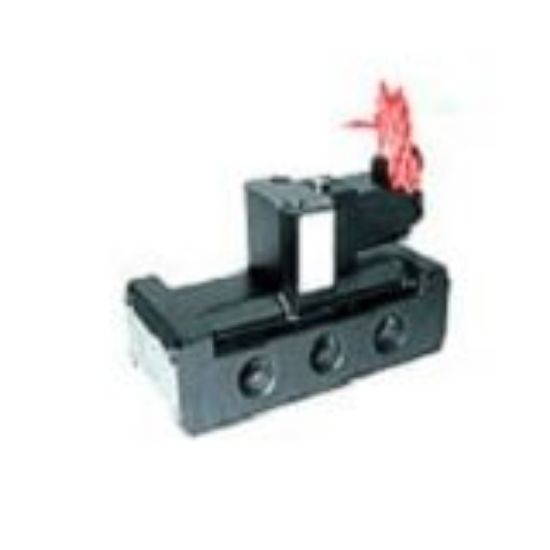

PHS540S-15-220V

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU PHS540S-15-220V

$458.00/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Standard	CE
Media	Air	Number of Manifold Outlets	15
Port Size	1/2 Inch	Number of Positions	2 Position Single Solenoid
Input Supply Voltage	220 VAC	Overide Functionality	Non-Locking
Seal Material	Nitrile	Port Type	PT
Actuation Type	Solenoid Air	Power Consumption	50 Hz 5 VA / 60 Hz 4.2 VA W
Flow Coefficient	3 Cv	Valve Type	2-Way
Maximum Operating Temperature	60 °C	Electrical Connection	Lead Wire
Pressure Rating	1.5 to 9 bar	Mounting Option	Inline
Minimum Operating Temperature	5 °C	Number of Ports	5
Lubricant	Non-Lubricated or Lubricated Air
