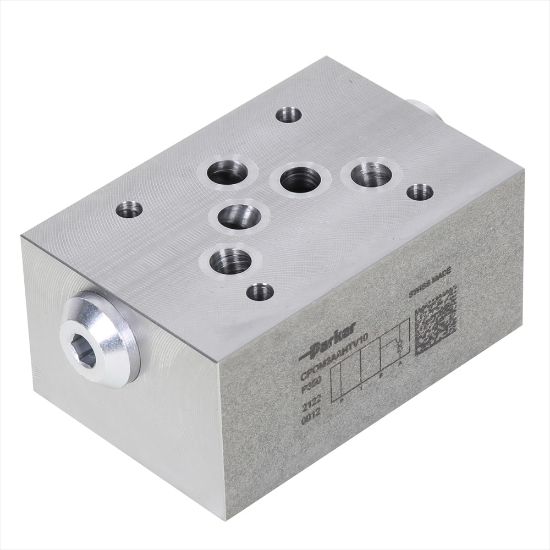

CPOM4DDHTV - Pilot Operated Check Valve - Series CPOM (N.A.)

Parker's pilot operated check valves series CPOM in sandwich design ensure an easy configuration of stack systems and provide a very good price-performance ratio.

Availability:	Backordered Estimated Lead Time: 54 days
Partner Available:	Backordered

SKU CPOM4DDHTV

$2,016.00/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Poppet Style	A & B ports
Connection Size	CETOP 03 (NG06)	Cracking Pressure	5 PSI (0.3 BAR)
Maximum Flow Rate	60 GAL/MIN (227 L/MIN)	Maximum Operating Pressure	5000 PSI (345 BAR)
Body Material	Steel	Connection Type	n/a
Seal Material	Fluorocarbon	Maximum Operating Pressure	5000
Operation Type	Pilot	Maximum Operating Temperature	158
Minimum Operating Temperature	-4	Weight	16.8
Flow Direction	n/a	Cracking Pressure	5
Actuation Type	Hydraulic Pressure	Maximum Flow Rate	53
Mounting Type	Subplate	Connection Size	CETOP 07 (NG16)
Poppet Style	A & B port only	Opening Pressure Ratio	13:1

Product resources

Literature and Reference Materials

MSG14-2500/US Industrial Hydraulic Valves (PDF)
