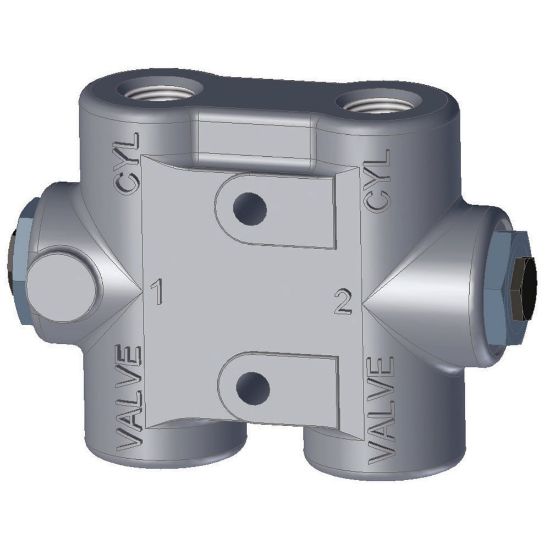

Picture of Pilot Operated Check Valves – LO, LOA Series - LO-10-S

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Pilot Operated Check Valves – LO, LOA Series - LO-10-S

Parker’s LO & LOA are Pilot Operated Check Valves that are designed to lock a cylinder, or part of a circuit, without leakage while a control valve is in the neutral position.
Availability:
Backordered
SKU LO-10-S
$352.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEAFlow Rate (gpm)25
Port SizeSAE-10Valve OptionSingle
Product StylePiolt Operated Check ValveConfigurationn/a
Mounting TypeIn-LineWeight6 lb
Flow Directionn/aOptionsSingle PO Check
Connection TypeSAEDivisionHydraulic Valve Systems Division
Maximum Operating Pressure3000 psiConnection Size#10
Body MaterialHigh Strength Cast IronMaximum Flow Rate25 Gal/min
Minimum Operating Temperature-40 °FSeal MaterialNitrile
Actuation TypeHydraulic PressureMaximum Operating Temperature+200 °F
Product resources

Literature and Reference Materials
