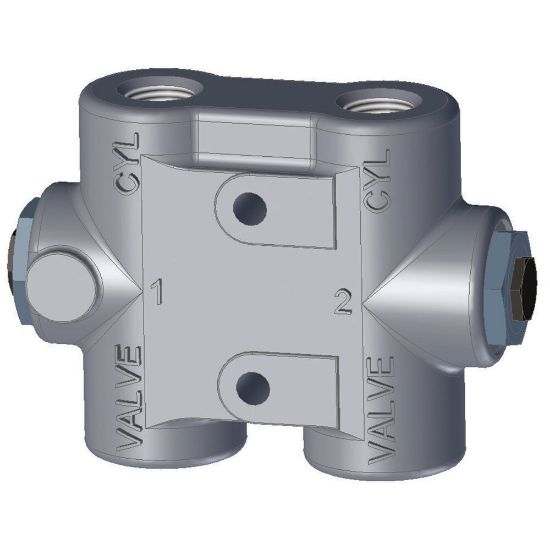

Picture of Pilot Operated Check Valves – LO, LOA Series - LO-50-S

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Pilot Operated Check Valves – LO, LOA Series - LO-50-S

Parker’s LO & LOA are Pilot Operated Check Valves that are designed to lock a cylinder, or part of a circuit, without leakage while a control valve is in the neutral position.
Availability:
Backordered
SKU LO-50-S
$352.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEAValve OptionSingle
Port Size1/2" NPTFlow Rate (gpm)25
Actuation TypeHydraulic PressureSeal MaterialNitrile
Weight6 lbMounting TypeIn-Line
Connection Size1/2"Product StylePiolt Operated Check Valve
DivisionHydraulic Valve Systems DivisionConfigurationn/a
OptionsSingle PO CheckConnection TypeNPT
Flow Directionn/aBody MaterialHigh Strength Cast Iron
Maximum Operating Temperature+200 °FMinimum Operating Temperature-40 °F
Maximum Operating Pressure2000 psiMaximum Flow Rate25 Gal/min
