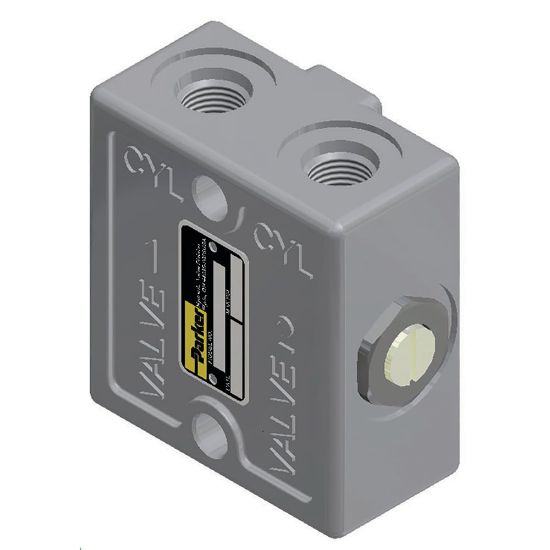

Picture of Pilot Operated Check Valves – LO, LOA Series - LOA-38-S

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Pilot Operated Check Valves – LO, LOA Series - LOA-38-S

Parker’s LO & LOA are Pilot Operated Check Valves that are designed to lock a cylinder, or part of a circuit, without leakage while a control valve is in the neutral position.
Availability:
Backordered
SKU LOA-38-S
$309.96
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEAFlow Rate (gpm)8
Valve OptionSinglePort Size3/8" NPT
Body MaterialHigh Strength Cast IronMaximum Operating Pressure2000 psi
Minimum Operating Temperature-40 °FConnection Size3/8"
Mounting TypeIn-LineActuation TypeHydraulic Pressure
Seal MaterialNitrileMaximum Operating Temperature+200 °F
Product StylePiolt Operated Check ValveConfigurationn/a
Weight2.75 lbMaximum Flow Rate8 Gal/min
Connection TypeNPTOptionsSingle PO Check
Flow Directionn/aDivisionHydraulic Valve Systems Division
Product resources

Literature and Reference Materials
