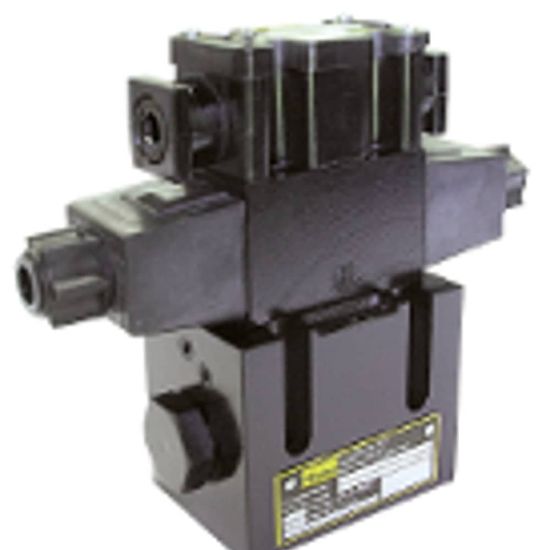

D31DW001C4NJP3F - Pilot Operated Directional Control Valve - D31DW, D31VW Series

Parker’s D31 directional control valves are 5-chamber, pilot operated, solenoid controlled valves.

Availability:	Backordered Estimated Lead Time: 19 days
Partner Available:	Backordered

SKU D31DW001C4NJP3F

$2,069.76/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Mounting Type	Subplate
Size	NFPA D05HE, CETOP 5H, DIN NG10M D03 Pilot, ISO Port	Maximum Flow Rate	30 gal/min
Maximum Operating Pressure	5721 psi/ 345 bar	Seal Material	Nitrile
Maximum Operating Temperature	140	Maximum Operating Pressure	5000
Power Supply Voltage	24	Weight	12
Minimum Operating Temperature	-4	Maximum Flow Rate	40
Actuation Type	Hydraulic Pressure	Mounting Type	Subplate
Body Material	Gray Iron	Options	Stroke Adjust A and B Ends
Spool Code	4-Way	Pilot Inlet / Drain Locations	Internal Pilot / Internal Drain
Spool Position	3-Position	Valve Type	Pilot Operated Directional Control Valve
Additional Options	Consult catalog for additional features.	Connection Type	DIN with Plug
Solenoid Option	High Watt (standard)	Coil Specifications Met	Omit
