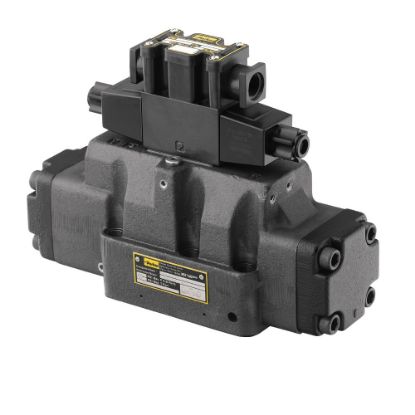

Pilot Operated Directional Control Valve - D81VW Series

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker’s D81VW directional control valves are available in 2 or 3-position. They are manifold or subplate mounted valves which conform to NFPA’s D08, CETOP 8 mounting patterns.

Markets:
• Entertainment Automation
• Factory Automation
• Lumber & Wood
• Machine Tools
• Marine
• Material Handling
• Miscellaneous Industrial
• Miscellaneous Manufacturing
• Miscellaneous Processing
• Molding
• Oil & Gas
• Other Natural Resources
• Packaging Machinery
• Plastic Packaging
• Power Generation
• Primary Metal Refining/Process
• Printing and Marking Equipment
• Rubber & Tire Processing
• Vehicle Assembly Facilities

Features/Benefits:
• Explosion proof available
• Low pressure drop design
• Fast response option available
• Hardened spools provide long life
• No tools required for coil removal
• Wide variety of voltages and electrical connections available

Applications:
• Suitable for general hydraulic applications

View as Grid List

Sort by

Display per page

SKU	Availability	Partner Available	Price	UOM	Mounting Type	Maximum Operating Pressure	Size	Maximum Flow Rate	Seal Material	Maximum Operating Pressure	Power Supply Voltage	Minimum Operating Temperature	Maximum Flow Rate	Mounting Type	Maximum Operating Temperature	Valve Type	Connection Type	Solenoid Option	Options	Additional Options	Body Material	Weight	Size	Spool Code	Actuation Type	Spool Position	Pilot Inlet / Drain Locations	Coil Specifications Met
D81VW001C1NJP	Backordered	Backordered	POR	EA	Subplate	5000 PSI	NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot	160 GPM	Nitrile	5000	24 VDC	-4	160	Subplate	+140	Pilot Operated Directional Control Valve	DIN with Plug	Omit - High Watt	Omit - No Options	Consult catalog for other available features	Grey Iron	43.2	NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot	001 - 4-way, 3 position; All Ports Blocked	Hydaulic Pressure	Double solenoid, 3 position, spring centered	Internal Pilot, External Drain	Omit - Standard Valve
D81VW001C1NJW	Backordered	Backordered	POR	EA	Subplate	5000 PSI	NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot	160 GPM	Nitrile	5000	24 VDC	-4	160	Subplate	+140	Pilot Operated Directional Control Valve	DIN w/o Plug	Omit - High Watt	Omit - No Options	Consult catalog for other available features	Grey Iron	43.2	NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot	001 - 4-way, 3 position; All Ports Blocked	Hydaulic Pressure	Double solenoid, 3 position, spring centered	Internal Pilot, External Drain	Omit - Standard Valve

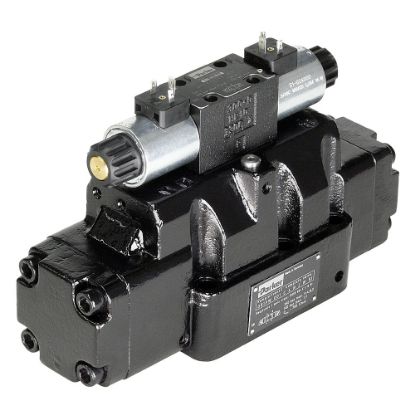

D81VW001C1NJW3A	Backordered	Backordered	POR	EA	Subplate	5000 PSI	NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot	160 GPM	Nitrile	5000	24 VDC	-4	160	Subplate	+140	Pilot Operated Directional Control Valve	DIN w/o Plug	Omit - High Watt	Pilot Choke Meter Out	Consult catalog for other available features	Grey Iron	43.2	NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot	001 - 4-way, 3 position; All Ports Blocked	Hydaulic Pressure	Double solenoid, 3 position, spring centered	Internal Pilot, External Drain	Omit - Standard Valve
D81VW001C1NJW4	Backordered	Backordered	POR	EA	Subplate	3000 PSI	NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot	160 GPM	Nitrile	5000	24 VDC	-4	160	Subplate	+140	Pilot Operated Directional Control Valve	DIN w/o Plug	Omit - High Watt	Omit - No Options	Consult catalog for other available features	Grey Iron	43.2	NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot	001 - 4-way, 3 position; All Ports Blocked	Hydaulic Pressure	Double solenoid, 3 position, spring centered	Internal Pilot, External Drain	CSA Approved
D81VW001C1NKW	Backordered	Backordered	POR	EA	Subplate	5000 PSI	NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot	160 GPM	Nitrile	5000	12 VDC	-4	160	Subplate	+140	Pilot Operated Directional Control Valve	DIN w/o Plug	Omit - High Watt	Omit - No Options	Consult catalog for other available features	Grey Iron	43.2	NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot	001 - 4-way, 3 position; All Ports Blocked	Hydaulic Pressure	Double solenoid, 3 position, spring centered	Internal Pilot, External Drain	Omit - Standard Valve
D81VW001C1NYC	Backordered	Backordered	POR	EA	Subplate	5000 PSI	NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot	160 GPM	Nitrile	5000	120/60 - 110/50 VAC	-4	160	Subplate	+140	Pilot Operated Directional Control Valve	Leadwire Conduit Box	Omit - High Watt	Omit - No Options	Consult catalog for other available features	Grey Iron	43.2	NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot	001 - 4-way, 3 position; All Ports Blocked	Hydaulic Pressure	Double solenoid, 3 position, spring centered	Internal Pilot, External Drain	Omit - Standard Valve
D81VW001C1NYCF	Backordered	Backordered	POR	EA	Subplate	5000 PSI	NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot	160 GPM	Nitrile	5000	120/60 - 110/50 VAC	-4	160	Subplate	+140	Pilot Operated Directional Control Valve	Leadwire Conduit Box	Low Watt	Omit - No Options	Consult catalog for other available features	Grey Iron	43.2	NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot	001 - 4-way, 3 position; All Ports Blocked	Hydaulic Pressure	Double solenoid, 3 position, spring centered	Internal Pilot, External Drain	Omit - Standard Valve
D81VW001C1NYGF56	Backordered	Backordered	POR	EA	Subplate	5000 PSI	NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot	160 GPM	Nitrile	5000	120/60 - 110/50 VAC	-4	160	Subplate	+140	Pilot Operated Directional Control Valve	Plug-in Conduit Box	Low Watt	Manaplug (Mini) with Lights	Consult catalog for other available features	Grey Iron	43.2	NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot	001 - 4-way, 3 position; All Ports Blocked	Hydaulic Pressure	Double solenoid, 3 position, spring centered	Internal Pilot, External Drain	Omit - Standard Valve
D81VW001C1NYP	Backordered	Backordered	POR	EA	Subplate	5000 PSI	NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot	160 GPM	Nitrile	5000	120/60 - 110/50 VAC	-4	160	Subplate	+140	Pilot Operated Directional Control Valve	DIN with Plug	Omit - High Watt	Omit - No Options	Consult catalog for other available features	Grey Iron	43.2	NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot	001 - 4-way, 3 position; All Ports Blocked	Hydaulic Pressure	Double solenoid, 3 position, spring centered	Internal Pilot, External Drain	Omit - Standard Valve
D81VW001C1NYP53F	Backordered	Backordered	POR	EA	Subplate	5000 PSI	NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot	160 GPM	Nitrile	5000	120/60 - 110/50 VAC	-4	160	Subplate	+140	Pilot Operated Directional Control Valve	DIN with Plug	Omit - High Watt	Strike Adjust A and B End	Consult catalog for other available features	Grey Iron	43.2	NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot	001 - 4-way, 3 position; All Ports Blocked	Hydaulic Pressure	Double solenoid, 3 position, spring centered	Internal Pilot, External Drain	Omit - Standard Valve
D81VW001C1NYW	Backordered	Backordered	POR	EA	Subplate	5000 PSI	NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot	160 GPM	Nitrile	5000	120/60 - 110/50 VAC	-4	160	Subplate	+140	Pilot Operated Directional Control Valve	DIN w/o Plug	Omit - High Watt	Omit - No Options	Consult catalog for other available features	Grey Iron	43.2	NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot	001 - 4-way, 3 position; All Ports Blocked	Hydaulic Pressure	Double solenoid, 3 position, spring centered	Internal Pilot, External Drain	Omit - Standard Valve
D81VW001C1NYW3A	Backordered	Backordered	POR	EA	Subplate	5000 PSI	NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot	160 GPM	Nitrile	5000	120/60 - 110/50 VAC	-4	160	Subplate	+140	Pilot Operated Directional Control Valve	DIN w/o Plug	Omit - High Watt	Pilot Choke Meter Out	Consult catalog for other available features	Grey Iron	43.2	NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot	001 - 4-way, 3 position; All Ports Blocked	Hydaulic Pressure	Double solenoid, 3 position, spring centered	Internal Pilot, External Drain	Omit - Standard Valve
D81VW001C1NYW3R	Backordered	Backordered	POR	EA	Subplate	5000 PSI	NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot	160 GPM	Nitrile	5000	120/60 - 110/50 VAC	-4	160	Subplate	+140	Pilot Operated Directional Control Valve	DIN w/o Plug	Omit - High Watt	Pilot Choke Meter Out and Pilot Pressure Reducer	Consult catalog for other available features	Grey Iron	43.2	NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot	001 - 4-way, 3 position; All Ports Blocked	Hydaulic Pressure	Double solenoid, 3 position, spring centered	Internal Pilot, External Drain	Omit - Standard Valve
D81VW001C1NYWF	Backordered	Backordered	POR	EA	Subplate	5000 PSI	NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot	160 GPM	Nitrile	5000	120/60 - 110/50 VAC	-4	160	Subplate	+140	Pilot Operated Directional Control Valve	DIN w/o Plug	Low Watt	Omit - No Options	Consult catalog for other available features	Grey Iron	43.2	NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot	001 - 4-way, 3 position; All Ports Blocked	Hydaulic Pressure	Double solenoid, 3 position, spring centered	External Pilot, External Drain	Omit - Standard Valve
D81VW001C1NYWF3A	Backordered	Backordered	POR	EA	Subplate	5000 PSI	NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot	160 GPM	Nitrile	5000	120/60 - 110/50 VAC	-4	160	Subplate	+140	Pilot Operated Directional Control Valve	DIN w/o Plug	Low Watt	Pilot Choke Meter Out	Consult catalog for other available features	Grey Iron	43.2	NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot	001 - 4-way, 3 position; All Ports Blocked	Hydaulic Pressure	Double solenoid, 3 position, spring centered	External Pilot, External Drain	Omit - Standard Valve
D81VW001C1NYWH	Backordered	Backordered	POR	EA	Subplate	5000 PSI	NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot	160 GPM	Nitrile	5000	120/60 - 110/50 VAC	-4	160	Subplate	+140	Pilot Operated Directional Control Valve	DIN w/o Plug	Omit - High Watt	Omit - No Options	Consult catalog for other available features	Grey Iron	43.2	NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot	001 - 4-way, 3 position; All Ports Blocked	Hydaulic Pressure	Double solenoid, 3 position, spring centered	External Pilot, External Drain	Omit - Standard Valve
D81VW001C1VJP5	Backordered	Backordered	POR	EA	Subplate	5000 PSI	NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot	160 GPM	Fluorocarbon	5000	24 VDC	-4	160	Subplate	+140	Pilot Operated Directional Control Valve	DIN with Plug	Omit - High Watt	Signal Lights	Consult catalog for other available features	Grey Iron	43.2	NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot	001 - 4-way, 3 position; All Ports Blocked	Hydaulic Pressure	Double solenoid, 3 position, spring centered	External Pilot, External Drain	Omit - Standard Valve
D81VW001C2NJC3F	Backordered	Backordered	POR	EA	Subplate	5000 PSI	NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot	160 GPM	Nitrile	5000	24 VDC	-4	160	Subplate	+140	Pilot Operated Directional Control Valve	Leadwire Conduit Box	Omit - High Watt	Stroke Adjust A and B end	Consult catalog for other available features	Grey Iron	43.2	NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot	001 - 4-way, 3 position; All Ports Blocked	Hydaulic Pressure	Double solenoid, 3 position, spring centered	External Pilot, External Drain	Omit - Standard Valve
D81VW001C2NJP	Backordered	Backordered	POR	EA	Subplate	5000 PSI	NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot	160 GPM	Nitrile	5000	24 VDC	-4	160	Subplate	+140	Pilot Operated Directional Control Valve	DIN with Plug	Omit - High Watt	Omit - No Options	Consult catalog for other available features	Grey Iron	43.2	NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot	001 - 4-way, 3 position; All Ports Blocked	Hydaulic Pressure	Double solenoid, 3 position, spring centered	External Pilot, External Drain	Omit - Standard Valve
D81VW001C2NJW	Backordered	Backordered	POR	EA	Subplate	5000 PSI	NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot	160 GPM	Nitrile	5000	24 VDC	-4	160	Subplate	+140	Pilot Operated Directional Control Valve	DIN w/o Plug	Omit - High Watt	Omit - No Options	Consult catalog for other available features	Grey Iron	43.2	NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot	001 - 4-way, 3 position; All Ports Blocked	Hydaulic Pressure	Double solenoid, 3 position, spring centered	External Pilot, External Drain	Omit - Standard Valve
