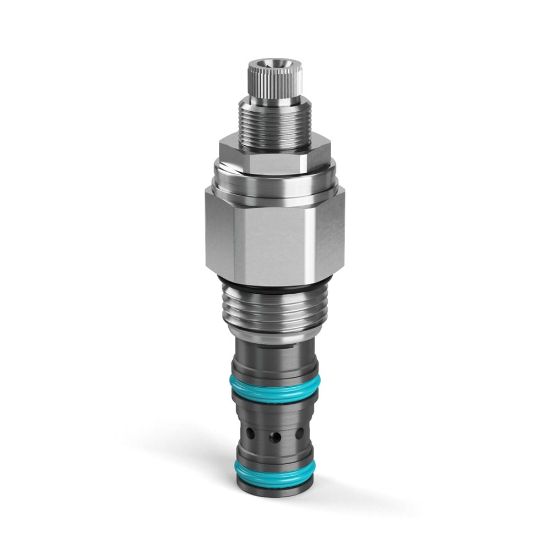

PRH082K10V - Pilot Operated Pressure Reducing Valves

Parker’s pilot operated pressure reducing valves are capable of flows up to 150 lpm (40 gpm) and regulating pressures up to 350 bar (5000 psi) and are commonly used for setting the pressure of a sub-circuit within a hydraulic system.

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU PRH082K10V

$101.14/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Fluorocarbon
Adjustment Mechanism	Knob	Flow Rate	8 GAL/MIN, 30 L/MIN
Pressure Control Range	100-1000 PSI, 6.9-69 BAR	Seal Material	Fluorocarbon
Body Material	n/a	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Minimum Operating Temperature	-26 °C	Maximum Operating Pressure	350 bar
Maximum Flow Rate	30 L/min	Flow Rate	30 L/min
Actuation Type	Pressure Sensing	Operation Type	Automatic
Adjustment Mechanism	Knob	Function	Pilot Operated
Maximum Tank Pressure	350 bar	Cavity Size	C08-3
Weight	0.25 lb	Maximum Inlet Pressure Rating	5500 psi
Installation Torque	43-49 Nm	Maximum Operating Temperature	+204 °C
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Mounting Type	Screw in cartridge valve	Valve Material	All parts steel. All operating parts hardened steel.
Maximum Pressure Setting	69 bar	Standard Setting Pressure	34.5 bar
Configuration	Pressure Reducing	Pressure Control Range	100-1000 psi
Maximum Drain Flow Rate	0.56 L/min	Pressure Control Sensitivity	369 per turn psi

Product resources

Literature and Reference Materials
