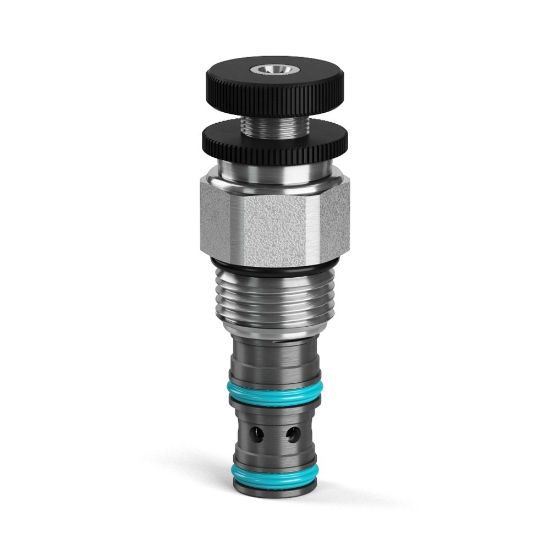

Pilot Operated Pressure Reducing Valves - PRH102T10V

Name: Pilot Operated Pressure Reducing Valves - PRH102T10V
SKU: PRH102T10V

Parker’s pilot operated pressure reducing valves are capable of flows up to 150 lpm (40 gpm) and regulating pressures up to 350 bar (5000 psi) and are commonly used for setting the pressure of a sub-circuit within a hydraulic system.

Availability:

Backordered

SKU PRH102T10V

$87.00

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Fluorocarbon
Adjustment Mechanism	Tamper Resistant	Flow Rate	15 GAL/MIN, 56.3 L/MIN
Pressure Control Range	200-1000 PSI, 13.8-69 BAR	Seal Material	Fluorocarbon
Body Material	n/a	Division	Hydraulic Cartridge Systems Division
Division	Hydraulic Systems Division	Maximum Flow Rate	15 Gal/min
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Minimum Operating Temperature	-15 °F
Weight	0.5 lb	Maximum Operating Pressure	350 bar
Actuation Type	Pressure Sensing	Operation Type	Automatic
Adjustment Mechanism	Tamper Resistant	Function	Pilot Operated
Maximum Tank Pressure	5000 psi	Cavity Size	C10-3
Maximum Inlet Pressure Rating	5500 psi	Maximum Operating Temperature	+400 °F
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Operating Temperature	-15 to +400 °F	Mounting Type	Screw in cartridge valve
Installation Torque	69-75 Nm	Flow Rate	56.3 L/min
Valve Material	All parts steel. All operating parts hardened steel.	Maximum Drain Flow Rate	0.25 Gal/min
Maximum Pressure Setting	69 bar	Standard Setting Pressure	500 psi
Configuration	Pressure Reducing	Pressure Control Sensitivity	369 per turn psi
Pressure Control Range	13.8-69 bar
