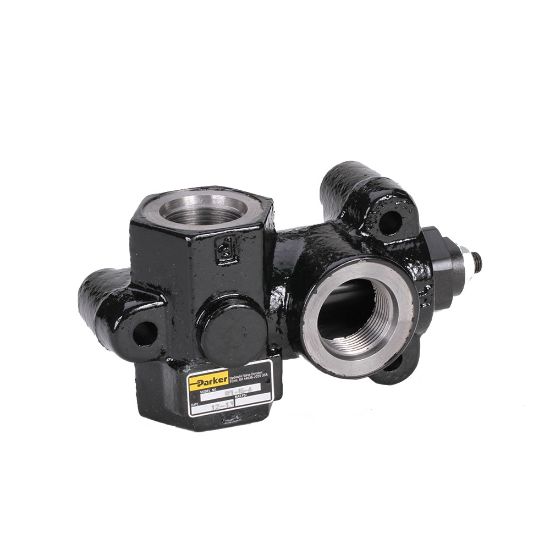

Picture of Pilot Operated Relief Valve - RPL Series - RPL-75-A

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Pilot Operated Relief Valve - RPL Series - RPL-75-A

Parker’s RPL In-line Relief Valve rated at 60 GPM is designed for limiting the maximum pressure which can be applied to the portion of the hydraulic circuit where it is installed.
Availability:
Backordered
SKU RPL-75-A
$548.80
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEAPort Size3/4" NPT
Maximum Operating Temperature+200 °FBody MaterialHigh Strength Cast Iron
Adjustment MechanismAdjustableWeight6 lb
Seal MaterialNitrileMounting TypeIn-Line
Actuation TypeHydraulic PressureDivisionHydraulic Valve Systems Division
Connection Size3/4"Pressure Control RangeAdjustable
Maximum Flow Rate60 Gal/minConnection TypeNPT
Product StylePilot Operated Relief ValveFor Fluid TypeHydraulic Oil
Minimum Operating Temperature-40 °FMaximum Operating Pressure2000 psi
