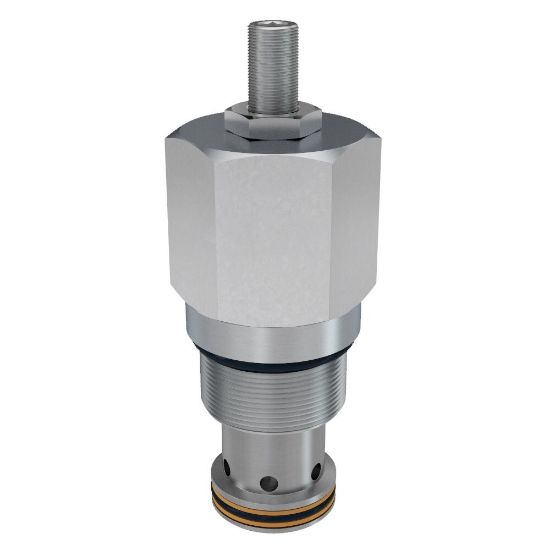

A06P2PZN - Pilot Operated Relief Valve with Free Reverse Check

REGIONAL - Parker’s pilot operated relief valves with reverse flow check are designed for continuous duty applications for working with pressures up to 420 bar (6000 psi) and flows up to 350 lpm (92 gpm).

Availability:	Backordered Estimated Lead Time: 133 days
Partner Available:	Backordered

SKU A06P2PZN

$597.14/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Adjustment Mechanism	Tamper Resistant
Flow Rate	106 GAL/MIN, 400 L/MIN	Seal Material	Screw
Seal Material	Nitrile	Maximum Operating Temperature	250 °F
Body Material	n/a	For Fluid Type	Mineral-based Hydraulic Fluids
Valve Material	Steel (all parts)	Filter Efficiency Rating	ISO 4406 18/16/13
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Minimum Operating Temperature	-30 °F
Maximum Operating Pressure	420 bar	Mounting Type	Screw-in Cartridge
Actuation Type	Pressure Sensing	Leak Rate	5 drops/min @ 1450 Psi (100 bar)
Operation Type	Automatic	Adjustment Mechanism	Screw
Maximum Tank Pressure	420 bar	Maximum Inlet Pressure Rating	6000 psi
Function	Pilot Operated	Pressure Control Range	10 to 420 bar
Maximum Pressure Setting	420 bar	Standard Setting Pressure	2900 psi
Weight	1.26 lb	Flow Rate	106 Gal/min
Cavity Size	C16-2	Configuration	Pressure Relief with Reverse Check
Maximum Flow Rate	106 Gal/min	Installation Torque	100 Nm
Pressure Control Sensitivity	53 bar Per Turn
