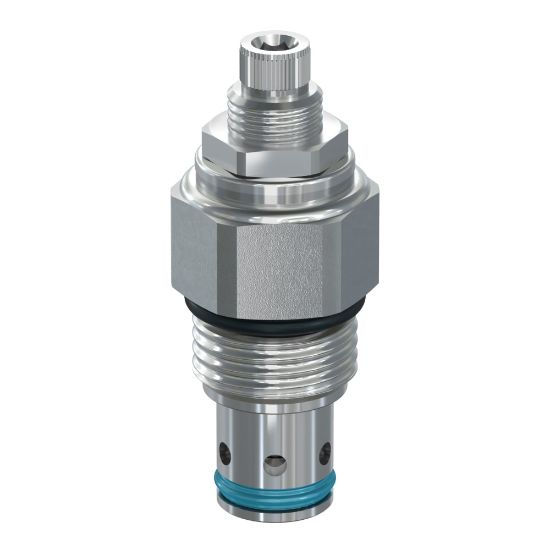

Picture of RAH101S30 - Pilot Operated Relief Valves

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

RAH101S30 - Pilot Operated Relief Valves

Parker’s pilot operated relief valves are designed for continuous duty applications featuring great stability with low pressure drop; working with pressures up to 420 bar (6000 psi) and flows up to 400 lpm (106 gpm).
Availability:
313 in stock
Wichita, KS247
Olivette, MO50
Kansas City, KS8
Springfield, MO5
Springfield, MO3
Partner Available:297 in stock
Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.
SKU RAH101S30
$55.03/each
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEAAdjustment MechanismScrew
Maximum Inlet Pressure Rating5000 PSI, 350 BARSeal MaterialD-Ring (Standard)
Flow Rate30 GAL/MIN, 113 L/MINPressure Control Range200-3000 PSI, 13.8-210 BAR
Body Materialn/aMaximum Kinematic Viscosity45-2000 SSU (6 to 420 cSt)
Minimum Operating Temperature-35 °FWeight0.23 kg
Maximum Operating Pressure350 barConfigurationPressure Relief
Actuation TypePressure SensingMaximum Pressure Setting3000 psi
Operation TypeAutomaticAdjustment MechanismScrew
FunctionPilot OperatedCavity SizeC10-2
Maximum Tank Pressure5000 psiMaximum Inlet Pressure Rating350 bar
Seal MaterialD-Ring (Standard)Filter Efficiency RatingISO 4406 18/16/13, SAE Class 4
For Fluid TypeMineral-based or synthetic hydraulic fluidsValve MaterialAll parts steel. All operating parts hardened steel
Mounting TypeScrew in cartridge valveMaximum Operating Temperature+93 °C
Installation Torque69-75 NmFlow Rate113 L/min
Maximum Flow Rate113 L/minPressure Control Sensitivity859 per turn psi
Standard Setting Pressure1500 psiPressure Control Range200-3000 psi
Leak Rate5 per @ 100 psi (6.8 bar) setting cm3/minReseat Pressure90% of pressure setting
