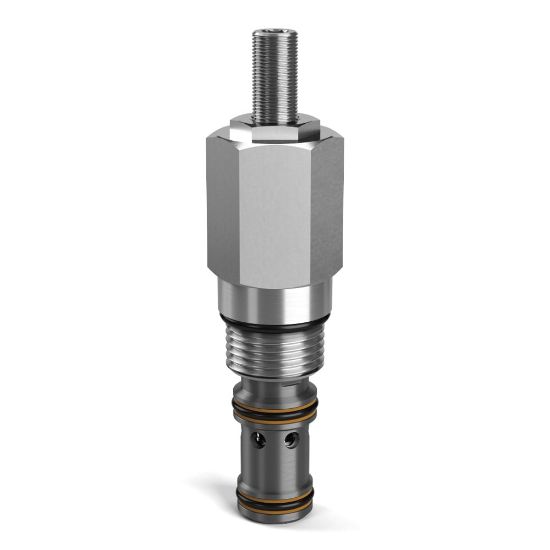

B04D3PZN - Pilot Operated Sequence Valve with Reverse Check

REGIONAL - Parker's pilot operated sequence valve with reverse check combines two functions into a single cartridge reducing space, components, and manifold complexity. Capable of flows up to 70 lpm (32 gpm) and pressures up to 420 bar (6000 psi).

Availability:	Backordered Estimated Lead Time: 133 days
Partner Available:	Backordered

SKU B04D3PZN

$406.79/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Adjustment Mechanism	Screw	Pressure Control Range	145-6000 PSI, 10-420 BAR
Flow Rate	18.5 GAL/MIN, 70 L/MIN	Seal Material	Nitrile
Maximum Operating Temperature	250 °F	Body Material	n/a
For Fluid Type	Synthetic Hydraulic Fluids	Cavity Size	C10-3S
Pilot Location	Internal	Valve Material	Steel (all parts)
Filter Efficiency Rating	ISO 4406 18/16/13	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Minimum Operating Temperature	-30 °F	Maximum Operating Pressure	420 bar
Mounting Type	Screw-in Cartridge	Actuation Type	Pressure Sensing
Operation Type	Automatic	Adjustment Mechanism	Screw
Maximum Tank Pressure	420 bar	Maximum Inlet Pressure Rating	6000 psi
Installation Torque	37 lb-ft	Pressure Control Range	10 to 420 bar
Maximum Pressure Setting	6000 psi	Standard Setting Pressure	200 bar
Pressure Control Sensitivity	55 bar Per Turn	Weight	0.55 lb
Flow Rate	18.5 Gal/min	Maximum Flow Rate	70 L/min
Function	Pilot Operated Sequence	Leak Rate	50 drops/min @ 1450 Psi (100 bar)
Drain Option	External	Configuration	Reverse Flow Check
