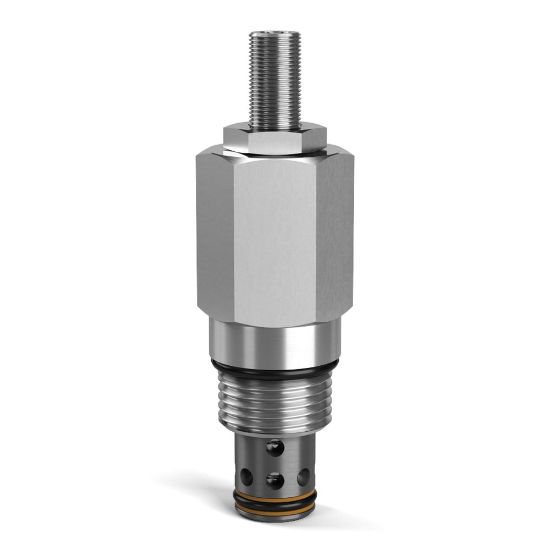

Pilot Operated Spool Type Kick Down Relief Valve - A04K2HZN

Name: Pilot Operated Spool Type Kick Down Relief Valve - A04K2HZN
SKU: A04K2HZN

REGIONAL - Parker’s kick-down pilot operated spool type sequence valve is a hydraulic fuse used to unload flow once the pressure setting is reached, resets when less than 45 psi. Flows up to 160 lpm (42 gpm) and pressures up to 420 bar (6000 psi).

Availability:

Backordered

SKU A04K2HZN

$283.41

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Adjustment Mechanism	Screw	Flow Rate	42 GAL/MIN, 160 L/MIN
Pressure Control Range	144-3000 PSI, 10-210 BAR	Seal Material	Nitrile
Body Material	n/a	Maximum Operating Pressure	6000 psi
Division	Hydraulic Cartridge Systems Division	For Fluid Type	Synthetic Hydraulic Fluids
Filter Efficiency Rating	ISO 4406 18/16/13	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Maximum Operating Temperature	121 °C	Minimum Operating Temperature	-34 °C
Mounting Type	Screw-in Cartridge	Actuation Type	Pressure Sensing
Maximum Pressure Setting	210 bar	Division	Mobile Hydraulic Systems Division Europe
Operation Type	Automatic	Valve Material	Hardened Steel (all operating parts)
Adjustment Mechanism	Screw	Maximum Tank Pressure	6000 psi
Operating Temperature	-34 to 121 °C	Pressure Control Range	145 to 3000 psi
Pressure Control Sensitivity	30 bar Per Turn	Maximum Inlet Pressure Rating	420 bar
Weight	0.64 lb	Function	Pilot Operated
Leak Rate	25 cm3/min @ 725 Psi (50 bar)	Cavity Size	C10-2
Configuration	Kick Down	Installation Torque	37 lb-ft
Standard Setting Pressure	1450 psi	Flow Rate	160 L/min
Maximum Flow Rate	42 Gal/min
