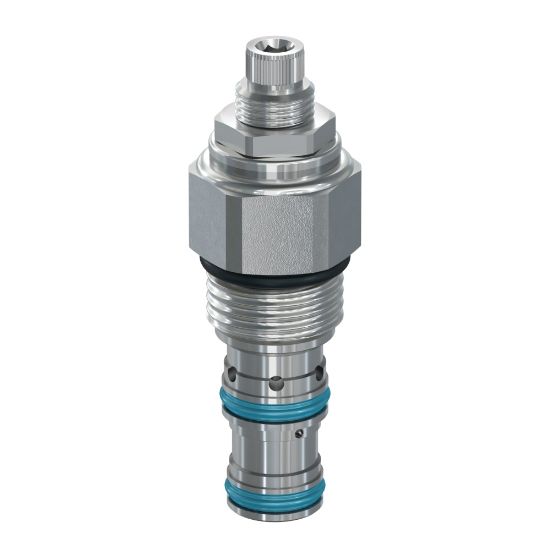

Picture of Pilot Operated Ventable Relief Valves - RAH101VS30

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Pilot Operated Ventable Relief Valves - RAH101VS30

REGIONAL - Parker’s pilot operated ventable relief valves offer the ability to control the pressure setting via internal adjustment or remote circuit; ideal in applications that require multiple settings up to 420 bar (6000 psi) and 400 lpm (106 gpm).
Availability:
Backordered
SKU RAH101VS30
$130.50
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEAAdjustment MechanismScrew
Seal MaterialD-Ring (Standard)Flow Rate18 GAL/MIN, 68 L/MIN
Maximum Inlet Pressure Rating5500 PSI, 380 BARPressure Control Range300-3000 PSI, 20.7-210 BAR
Body Materialn/aDivisionHydraulic Cartridge Systems Division
DivisionHydraulic Systems DivisionMaximum Kinematic Viscosity45-2000 SSU (6 to 420 cSt)
Minimum Operating Temperature-35 °FMaximum Operating Temperature+200 °F
Weight0.5 lbMaximum Operating Pressure350 bar
Actuation TypePressure SensingMaximum Pressure Setting210 bar
Operation TypeAutomaticAdjustment MechanismScrew
FunctionPilot OperatedConfigurationVentable Pressure Relief
Maximum Tank Pressure5000 psiSeal MaterialD-Ring (Standard)
Cavity SizeC10-3Maximum Inlet Pressure Rating380 bar
Installation Torque48 lb-ftFilter Efficiency RatingISO 4406 18/16/13, SAE Class 4
For Fluid TypeMineral-based or synthetic hydraulic fluidsValve MaterialAll parts steel. All operating parts hardened steel
Mounting TypeScrew in cartridge valveOperating Temperature-37 to +93 °C
Flow Rate18 Gal/minMaximum Flow Rate18 Gal/min
Standard Setting Pressure103.5 barPressure Control Sensitivity58.9 per turn bar
Pressure Control Range300-3000 psiLeak Rate5 per 100 psi (6.8 bar) setting cm3/min
Reseat Pressure80% of pressure setting
