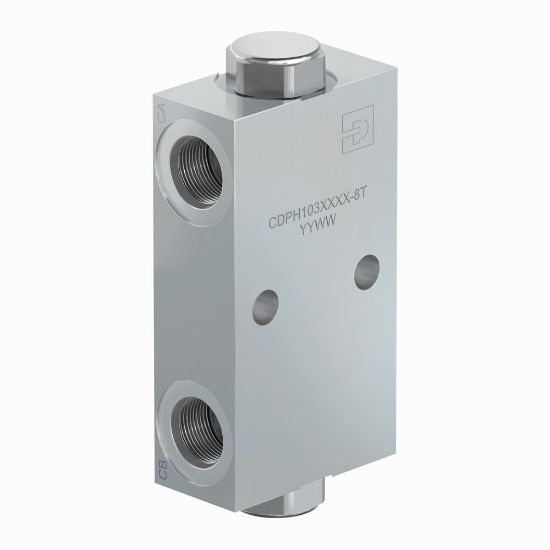

CDPH103P-8T - Pilot Piston Style Dual Pilot Operated Check Valves

Name: CDPH103P-8T - Pilot Piston Style Dual Pilot Operated Check Valves
SKU: CDPH103P-8T
Price: 183.79 USD
Availability: InStock

Designed to lock hydraulic circuits or actuators in rest conditions, Parker’s dual pilot operated check valves allow bidirectional flow from 38 lpm (10 gpm) to 226 lpm (60 gpm) and pressures up to 350 bar (5,000 psi) after pilot pressure is supplied.

Availability:

12 in stock

Wichita, KS

Partner Available:

1 Limited Stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU CDPH103P-8T

$183.79/each

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Inlet Pressure Rating	5000 PSI, 350 BAR
Seal Material	D-Ring (Standard)	Sealed Pilot Included	No
Flow Rate	16 GAL/MIN, 60 L/MIN	Cracking Pressure	5 PSI, 0.3 BAR
Body Material	Steel	Connection Type	SAE
For Fluid Type	Synthetic Hydraulic Fluids	Valve Material	Hardened Steel
Filter Efficiency Rating	SAE Class 4	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Minimum Operating Temperature	-35 °F	Maximum Operating Temperature	200 °F
Connection Size	-8	Weight	1.5 kg
Maximum Operating Pressure	350 bar	Cavity Size	C10
Cracking Pressure	5 psi	Actuation Type	Pressure Sensing
Operation Type	Automatic	Maximum Inlet Pressure Rating	350 bar
Seal Material	D-Ring (Standard)	Sealed Pilot Included	No
Function	Dual Pilot Operated	Configuration	Pilot Piston Style
Mounting Type	Line Mounted	Pilot Pressure Ratio	4:1
Flow Rate	60 L/min	Leak Rate	Internal (max): 2 Dpm (0.13 cc/min) across Check Valves
Flow Direction	Check Flow Cylinder to Valve	Maximum Flow Rate	60 L/min
