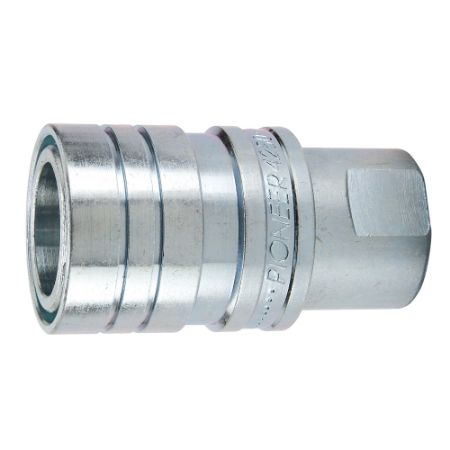

Pioneer, Agriculture Quick Couplers, Breakaway Sleeve, ISO 5675 / ISO 7241 - 4200 Series

4200 Series Couplers (hydraulic) 3000 psi, connect with 1/2"" 8010 Series Nipples (ISO 5675, Pioneer male tips) and 4000 Series Nipples (3/8"" size).
Parker's 4200 Series are double shut-off quick couplings and the 1/2"" size is compatible with 5001-4 and 5006-4 breakaway clamps. Couplers have push to connect operation and a push/pull breakaway sleeve. When the coupler is clamp or bulkhead mounted it is ideal for use in applications where a breakaway feature is desirable. Couplers have a poppet or ball valve option.

Technical Characteristics:
• Sizes: 3/8” & 1/2”
• Material: Steel
• Port Ends: Female NPTF, Female ORB
• Seal Options: Nitrile, EPR, Fluorocarbon, Neoprene

Markets:
• Agriculture
• Mobile Equipment
• Construction

Features/Benefits:
• One handed push to connect operation
• Push - pull breakaway sleeve allows coupler to disconnect in the case of an implement breakaway
• Poppet or ball valve option
• Critical parts are hardened for durability
• 1/2"" size globally connects with Pioneer universal male tips (nipples) complying to ISO 5675

Applications:
• Hydraulic Loaders
• Add-on hydraulic circuits
• Implement breakaway
• Hydraulic tools
• Tractors / mobile equipment
