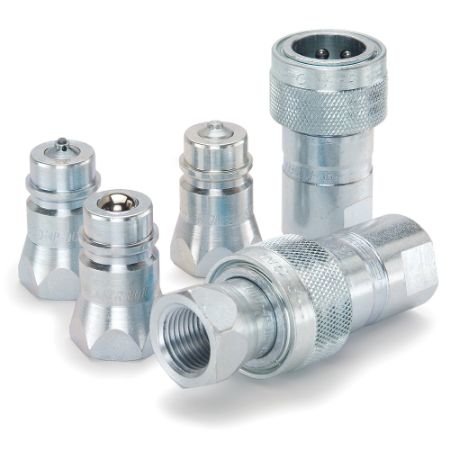

Pioneer, Agriculture Quick Couplings, ISO 5675 / ISO 7241 - 4000 Series
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
4000 Series Couplers (hydraulic) 3000 psi, connect with 4000 Series Nipples and 1/2" 8010 Series, ISO 5675 Pioneer tips and ISO 7241 nipples. Parker's 4000 Series are double shut-off quick couplings with poppet or ball valve options. Couplers have a manual sleeve. Push-pull breakaway sleeve is only available on 1/4" body size with 9/16 - 18 ORB thread, part number 4050P-T6.
4000 Series Nipples (hydraulic) 3000 psi, connect with 4000 Series Couplers and 4200 Series Couplers. Nipples are available with a poppet or ball valve.
Technical Characteristics:
• Sizes: 1/4” – 1”
• Material: Steel
• Port Ends: Female NPTF, Female ORB, Male ORB, Female BSPP
• Seal Options: Nitrile, EPR, Fluorocarbon, Neoprene
Markets:
• Agriculture
• Mobile Equipment
• Construction
• Snow removal
• Industrial
Features/Benefits:
• Proven design for rugged applications
• Poppet or ball valve option
• Critical parts are hardened for durability
• 1/2" size globally connects with ISO 5675 Pioneer tips and ISO 7241 nipples
Applications:
• Tractors and agricultural equipment
• Hydraulic loaders
• Add-on hydraulic circuits
• Hydraulic tools
• Snow plow attachments
Read More...4000 Series Nipples (hydraulic) 3000 psi, connect with 4000 Series Couplers and 4200 Series Couplers. Nipples are available with a poppet or ball valve.
Technical Characteristics:
• Sizes: 1/4” – 1”
• Material: Steel
• Port Ends: Female NPTF, Female ORB, Male ORB, Female BSPP
• Seal Options: Nitrile, EPR, Fluorocarbon, Neoprene
Markets:
• Agriculture
• Mobile Equipment
• Construction
• Snow removal
• Industrial
Features/Benefits:
• Proven design for rugged applications
• Poppet or ball valve option
• Critical parts are hardened for durability
• 1/2" size globally connects with ISO 5675 Pioneer tips and ISO 7241 nipples
Applications:
• Tractors and agricultural equipment
• Hydraulic loaders
• Add-on hydraulic circuits
• Hydraulic tools
• Snow plow attachments
| Action | SKU | Availability | Partner Available | Price | UOM | Coupling Half | Connection Type | Valve Type | Product Type | Connection Thread Size (inch) | Body Size (inch) | Maximum Operating Pressure | Maximum Operating Temperature | Specifications Met | Body Material | Minimum Operating Temperature | Hex Size | Plating Type | Seal Material | Dimensional Weight | Flow Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4010-2P | 98 in stock | 321 in stock | $11.89/each | EA | Male Nipple | Female NPTF | Poppet | Manual sleeve | 1/4 - 18 | 1/4 | 3000 psi | 250 °F | N/A | Steel | -40 °F | 0.75 inch | Zinc with clear trivalent chromate | Nitrile | 0.01999400479616307 lb | 3 Gal/min | |
| 4010-3P | 53 in stock | 310 in stock | $15.02/each | EA | Male Nipple | Female NPTF | Poppet | Manual sleeve | 3/8 - 18 | 3/8 | 3000 psi | 250 °F | N/A | Steel | -40 °F | 0.94 inch | Zinc with clear trivalent chromate | Nitrile | 0.03998800959232614 lb | 6 Gal/min | |
| 4010-6P | 31 in stock | 116 in stock | $50.10/each | EA | Male Nipple | Female NPTF | Poppet | Manual sleeve | 1 - 11 1/2 | 1 | 3000 psi | 250 °F | N/A | Steel | -40 °F | 1.63 inch | Zinc with clear trivalent chromate | Nitrile | 0.11236510791366906 lb | 50 Gal/min | |
| 4010-T6 | 5 in stock | 38 in stock | $17.55/each | EA | Male Nipple | Female ORB | Poppet | Manual sleeve | 9/16 - 18 | 1/4 | 3000 psi | 250 °F | N/A | Steel | -40 °F | 0.75 inch | Zinc with clear trivalent chromate | Nitrile | 0.01999400479616307 lb | 3 Gal/min | |
| 4050-15 | 46 in stock | 90 in stock | $38.42/each | EA | Female Coupler | Female ORB | Ball | Manual sleeve | 3/4 - 16 | 1/2 | 3000 psi | 250 °F | ISO 5675 | Steel | -40 °F | 1.06 inch | Zinc with clear trivalent chromate | Nitrile | 0.15995203836930455 lb | 12 Gal/min | |
| 4050-15P | 10 in stock | 90 in stock | $41.02/each | EA | Female Coupler | Female ORB | Poppet | Manual sleeve | 3/4 - 16 | 1/2 | 3000 psi | 250 °F | ISO 5675 | Steel | -40 °F | 1.06 inch | Zinc with clear trivalent chromate | Nitrile | 0.15995203836930455 lb | 12 Gal/min | |
| 4050-16 | 8 in stock | 54 in stock | $43.89/each | EA | Female Coupler | Female ORB | Ball | Manual sleeve | 7/8 - 14 | 1/2 | 3000 psi | 250 °F | ISO 5675 | Steel | -40 °F | 1.06 inch | Zinc with clear trivalent chromate | Nitrile | 0.15995203836930455 lb | 12 Gal/min | |
| 4050-16P | Backordered | 5 in stock | $53.26/each | EA | Female Coupler | Female ORB | Poppet | Manual sleeve | 7/8 - 14 | 1/2 | 3000 psi | 250 °F | ISO 5675 | Steel | -40 °F | 1.06 inch | Zinc with clear trivalent chromate | Nitrile | 0.12464028776978417 lb | 12 Gal/min | |
| 4050-2P | 36 in stock | 363 in stock | $27.97/each | EA | Female Coupler | Female NPTF | Poppet | Manual sleeve | 1/4 - 18 | 1/4 | 3000 psi | 250 °F | N/A | Steel | -40 °F | 0.88 inch | Zinc with clear trivalent chromate | Nitrile | 0.03998800959232614 lb | 3 Gal/min | |
| 4050-2P-T8M | Backordered | Backordered | $37.09/each | EA | Female Coupler | Male ORB | Poppet | Manual sleeve | 3/4 - 16 | 1/4 | 3000 psi | 250 °F | N/A | Steel | -40 °F | 0.88 inch | Zinc with clear trivalent chromate | Nitrile | 0.025786870503597122 lb | 3 Gal/min | |
| 4050-3P | 29 in stock | 160 in stock | $37.38/each | EA | Female Coupler | Female NPTF | Poppet | Manual sleeve | 3/8 - 18 | 3/8 | 3000 psi | 250 °F | N/A | Steel | -40 °F | 0.94 inch | Zinc with clear trivalent chromate | Nitrile | 0.07997601918465227 lb | 6 Gal/min | |
| 4050-4 | 72 in stock | 650 in stock | $33.79/each | EA | Female Coupler | Female NPTF | Ball | Manual sleeve | 1/2 - 14 | 1/2 | 3000 psi | 250 °F | ISO 5675 | Steel | -40 °F | 1.06 inch | Zinc with clear trivalent chromate | Nitrile | 0.15995203836930455 lb | 12 Gal/min | |
| 4050-4P | 25 in stock | 205 in stock | $33.79/each | EA | Female Coupler | Female NPTF | Poppet | Manual sleeve | 1/2 - 14 | 1/2 | 3000 psi | 250 °F | ISO 5675 | Steel | -40 °F | 1.06 inch | Zinc with clear trivalent chromate | Nitrile | 0.15995203836930455 lb | 12 Gal/min | |
| 4050-5 | 37 in stock | 107 in stock | $46.23/each | EA | Female Coupler | Female NPTF | Ball | Manual sleeve | 3/4 - 14 | 1/2 | 3000 psi | 250 °F | ISO 5675 | Steel | -40 °F | 1.13 inch | Zinc with clear trivalent chromate | Nitrile | 0.15995203836930455 lb | 12 Gal/min | |
| 4050-5P | 4 in stock | 42 in stock | $49.82/each | EA | Female Coupler | Female NPTF | Poppet | Manual sleeve | 3/4 - 14 | 1/2 | 3000 psi | 250 °F | ISO 5675 | Steel | -40 °F | 1.13 inch | Zinc with clear trivalent chromate | Nitrile | 0.15995203836930455 lb | 12 Gal/min | |
| 4050-6P | 23 in stock | 121 in stock | $106.21/each | EA | Female Coupler | Female NPTF | Poppet | Manual sleeve | 1 - 11 1/2 | 1 | 3000 psi | 250 °F | N/A | Steel | -40 °F | 1.63 inch | Zinc with clear trivalent chromate | Nitrile | 0.22473021582733813 lb | 50 Gal/min | |
| 4050P-T6 | Backordered | 2 Limited Stock | $164.06/each | EA | Female Coupler | Female ORB | Poppet | Push pull sleeve | 9/16 - 18 | 1/4 | 3000 psi | 250 °F | N/A | Steel | -40 °F | 0.88 inch | Zinc with clear trivalent chromate | Nitrile | 3 Gal/min | ||
| 4050-T6 | Backordered | 5 in stock | $32.89/each | EA | Female Coupler | Female ORB | Poppet | Manual sleeve | 9/16 - 18 | 1/4 | 3000 psi | 250 °F | N/A | Steel | -40 °F | 0.88 inch | Zinc with clear trivalent chromate | Nitrile | 0.02670863309352518 lb | 3 Gal/min | |
| 4110-5 | 16 in stock | 329 in stock | $40.63/each | EA | Male Nipple | Female NPTF | Ball | Manual sleeve | 3/4 - 14 | 3/4 | 3000 psi | 250 °F | N/A | Steel | -40 °F | 1.31 inch | Zinc with clear trivalent chromate | n/a | 0.062320143884892085 lb | 28 Gal/min | |
| 4150-5 | 11 in stock | 140 in stock | $86.07/each | EA | Female Coupler | Female NPTF | Ball | Manual sleeve | 3/4 - 14 | 3/4 | 3000 psi | 250 °F | N/A | Steel | -40 °F | 1.38 inch | Zinc with clear trivalent chromate | Nitrile | 0.12464028776978417 lb | 28 Gal/min |
