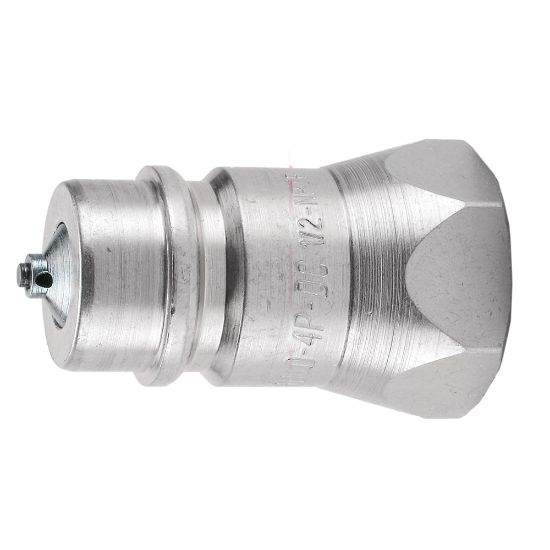

8010-4P-DC - Pioneer, Agriculture Universal Male Tip, ISO 5675 - 8010 Series

Name: 8010-4P-DC - Pioneer, Agriculture Universal Male Tip, ISO 5675 - 8010 Series
SKU: 8010-4P-DC
Price: 32.30 USD
Availability: InStock

Pioneer 8010 Nipples are the standard male tip of the agricultural industry, developed and proven in over 65 years of farm service.

Availability:

8 in stock

Olivette, MO

Partner Available:

23 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 8010-4P-DC

$32.30/each

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Valve Style	Connect under pressure poppet
Connection Type	NPTF	Port Connection (inch)	1/2 - 14
Body Material	Steel	Plating Type	Zinc with clear trivalent chromate
Dimensional Weight	0.03998800959232614 lb	Minimum Operating Temperature	-40 °F
Coupling Half	Nipple	Maximum Operating Temperature	250 °F
Specifications Met	ISO 5675	Seal Material	Nitrile
Media	Hydraulic	Thread Size	Female
Maximum Operating Pressure	3000 psi	Flow Rate	12 Gal/min
Body Size	1/2 inch
