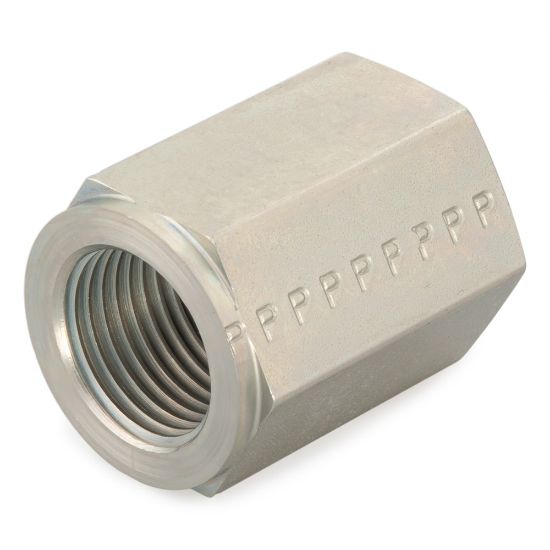

1 GHG4-S - Pipe Fittings and Port Adapters

Parker's Pipe Fittings and Port Adapters product line offers a wide range of thread types and high static pressure ratings.

Availability:	Backordered Estimated Lead Time: 75 days
Partner Available:	1 Limited Stock

SKU 1 GHG4-S

$59.60/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Shape	Straight
Length (inch)	na	Body Material	Steel
O-Ring Material	na	Connection 3 Style	na
Connection 1 Thread Size (mm)	na	Connection 2 Thread Size (mm)	na
Connection 1 Thread Size (inch)	1-11 1/2	Connection 3 Thread Size (inch)	na
Connection 1 Style	Female NPT/NPTF	Connection Style	BSPP to NPT/NPTF
Connection 2 Style	Female BSPP	Connection 2 Thread Size (inch)	1-11
Body Material	Steel	Connection 4 Size	na
Connection 4 Thread Size	na	Maximum Dynamic Pressure	3000 psi
Fitting Type	Pipe Adapter

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

LR2382882TA-Pipe-and-hose-Adapters (PDF)
