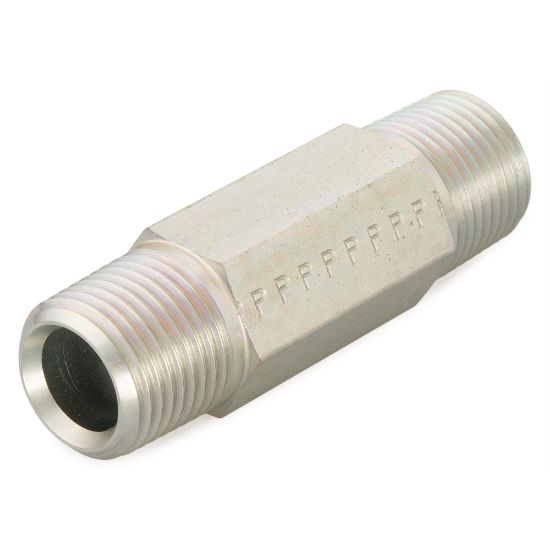

1 X 3.0 FFF-SS - Pipe Fittings and Port Adapters

Parker's Pipe Fittings and Port Adapters product line offers a wide range of thread types and high static pressure ratings.

Availability:	Backordered Estimated Lead Time: 38 days
Partner Available:	1 Limited Stock

SKU 1 X 3.0 FFF-SS

$163.80/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Shape	Straight
Length (inch)	na	Body Material	Stainless Steel
O-Ring Material	na	Connection 1 Style	Male NPT/NPTF
Connection 3 Style	na	Connection 1 Thread Size (mm)	na
Connection 2 Thread Size (mm)	na	Connection 1 Thread Size (inch)	1-11 1/2
Connection 2 Thread Size (inch)	1-11 1/2	Connection 3 Thread Size (inch)	na
Connection 2 Style	Male NPT/NPTF	Connection Style	NPT/NPTF to NPT/NPTF - Long
Body Material	Stainless Steel	Connection 4 Size	na
Dimensional Weight	0.12464028776978417 lb	Connection 4 Thread Size	na
Fitting Type	Pipe Fitting	Maximum Dynamic Pressure	5400 psi

Product resources

Compliance, Certifications & Safety

LR2382882TA-Pipe-and-hose-Adapters (PDF)

Literature and Reference Materials
