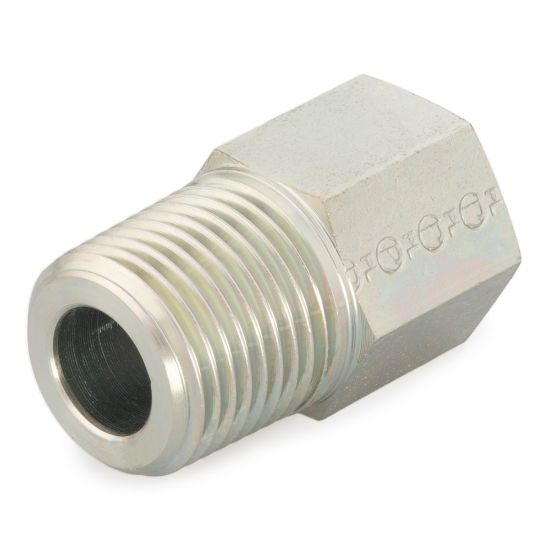

1/2X3/8PTR34MS - Pipe Fittings and Port Adapters

Parker's Pipe Fittings and Port Adapters product line offers a wide range of thread types and high static pressure ratings.

Availability:	Backordered Estimated Lead Time: 99 days
Partner Available:	5 in stock

SKU 1/2X3/8PTR34MS

$55.88/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Shape	Straight
Length (inch)	na	Body Material	Steel
O-Ring Material	na	Connection Style	BSPT to BSPP
Connection 1 Style	Male BSPT	Connection 2 Style	Female BSPP
Connection 3 Style	na	Connection 1 Thread Size (mm)	na
Connection 2 Thread Size (mm)	na	Connection 1 Thread Size (inch)	1/2-14
Connection 2 Thread Size (inch)	3/8-19	Connection 3 Thread Size (inch)	na
Fitting Type	Pipe Adapter	Body Material	Steel
Connection 4 Size	na	Connection 4 Thread Size	na
Maximum Dynamic Pressure	5000 psi
