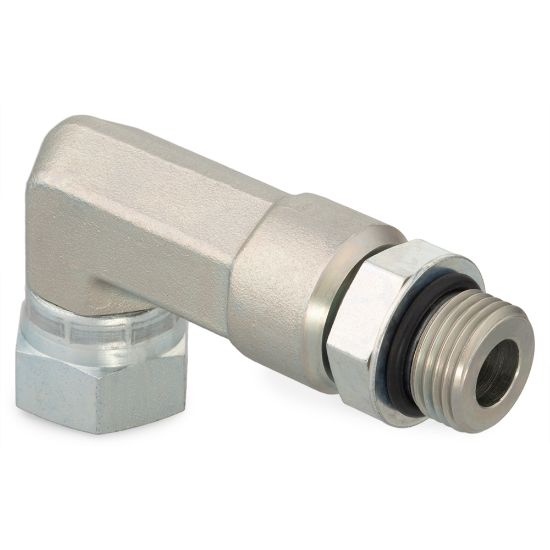

5507-6-6 - Pipe Fittings and Port Adapters

Parker's Pipe Fittings and Port Adapters product line offers a wide range of thread types and high static pressure ratings.

Availability:	Backordered Estimated Lead Time: 75 days
Partner Available:	Backordered

SKU 5507-6-6

$75.58/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Length (inch)	na
Body Material	Steel	Connection 2 Style	Female NPSM Swivel
Connection 3 Style	na	Connection 1 Thread Size (mm)	na
Connection 2 Thread Size (mm)	na	Connection 2 Thread Size (inch)	3/8-18
Connection 3 Thread Size (inch)	na	O-Ring Material	90 Durometer Nitrile
Connection 1 Style	Male SAE-ORB	Connection 1 Thread Size (inch)	9/16-18
Shape	90° Elbow	Connection Style	SAE-ORB to NPSM Swivel - Long
Body Material	Steel	Fitting Type	Pipe Swivel
Connection 4 Size	na	Connection 4 Thread Size	na
Maximum Dynamic Pressure	6000 psi

Product resources

Compliance, Certifications & Safety

LR2382882TA-Pipe-and-hose-Adapters (PDF)

Literature and Reference Materials
