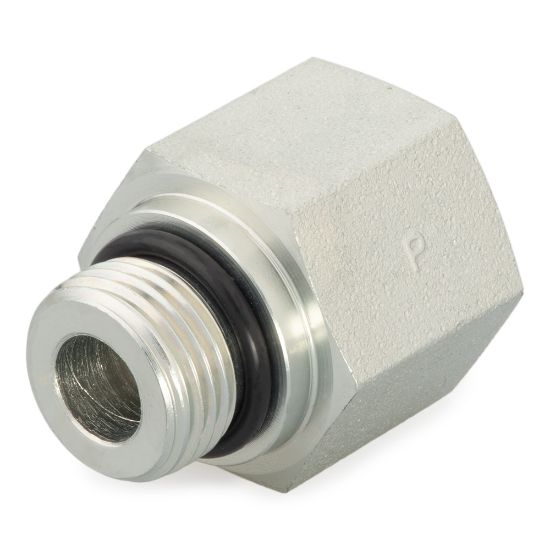

Picture of Pipe Fittings and Port Adapters - 8-1/4 F5OG-SS

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Pipe Fittings and Port Adapters - 8-1/4 F5OG-SS

Parker's Pipe Fittings and Port Adapters product line offers a wide range of thread types and high static pressure ratings.
Availability:
Backordered
SKU 8-1/4 F5OG-SS
$102.18
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEAShapeStraight
Length (inch)naBody MaterialStainless Steel
Connection 3 StylenaConnection 1 Thread Size (mm)na
Connection 2 Thread Size (mm)naConnection 2 Thread Size (inch)1/4-18
Connection 3 Thread Size (inch)naO-Ring Material90 Durometer Nitrile
Connection 1 StyleMale SAE-ORBConnection 1 Thread Size (inch)3/4-16
Connection 2 StyleFemale NPT/NPTFConnection StyleSAE-ORB to NPT/NPTF
DivisionTube Fittings DivisionBody MaterialStainless Steel
Connection 4 SizenaDimensional Weight0.07913669064748201 lb
Connection 4 Thread SizenaMaximum Dynamic Pressure6000 psi
Fitting TypePort Adapter
