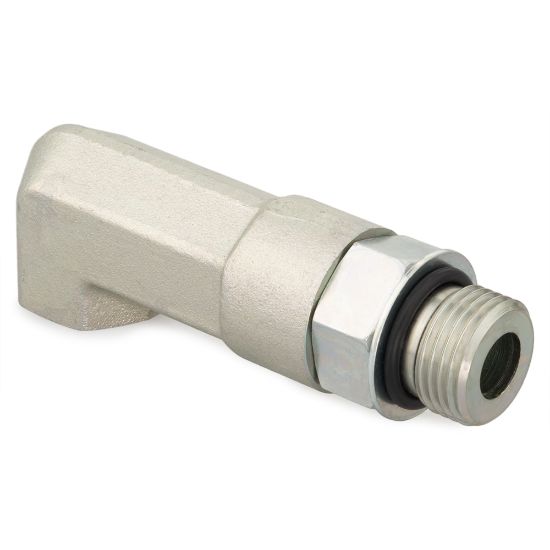

8-3/8 AOE4G-S - Pipe Fittings and Port Adapters

Parker's Pipe Fittings and Port Adapters product line offers a wide range of thread types and high static pressure ratings.

Availability:	Backordered Estimated Lead Time: 14 days
Partner Available:	6 in stock

SKU 8-3/8 AOE4G-S

$35.18/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Length (inch)	na
Body Material	Steel	Connection 3 Style	na
Connection 1 Thread Size (mm)	na	Connection 2 Thread Size (mm)	na
Connection 2 Thread Size (inch)	3/8-18	Connection 3 Thread Size (inch)	na
O-Ring Material	90 Durometer Nitrile	Connection 1 Style	Male SAE-ORB
Connection 1 Thread Size (inch)	3/4-16	Shape	90° Elbow
Connection 2 Style	Female NPT/NPTF	Connection Style	SAE-ORB Long to NPT/NPTF
Body Material	Steel	Connection 4 Size	na
Connection 4 Thread Size	na	Fitting Type	Port Adapter
Maximum Dynamic Pressure	4500 psi
