8-6 F5OG5-S - Pipe Fittings and Port Adapters

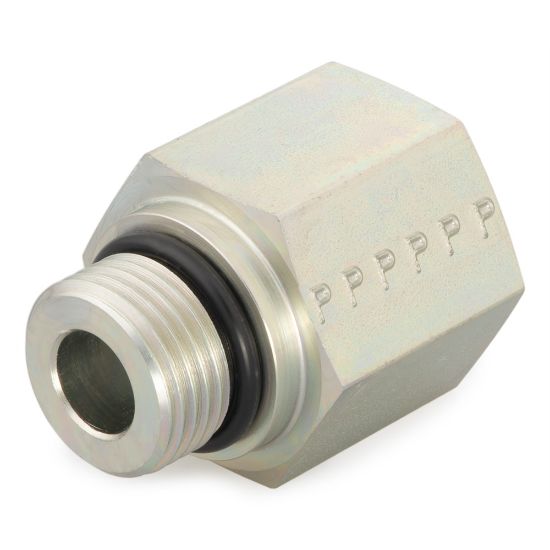

Name: 8-6 F5OG5-S - Pipe Fittings and Port Adapters
SKU: 8-6 F5OG5-S
Price: 5.05 USD
Availability: InStock

Parker's Pipe Fittings and Port Adapters product line offers a wide range of thread types and high static pressure ratings.

Availability:

34 in stock

Olivette, MO	9
WICHITA, KS	6
Springfield, MO	6
TOPEKA, KS	4
COLUMBIA, MO	3
Peoria, IL	3
Olivette, MO	2
Joplin, MO	1

Partner Available:

1140 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 8-6 F5OG5-S

$5.05/each

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Shape	Straight
Length (inch)	na	Body Material	Steel
Connection 3 Style	na	Connection 1 Thread Size (mm)	na
Connection 2 Thread Size (mm)	na	Connection 3 Thread Size (inch)	na
O-Ring Material	90 Durometer Nitrile	Connection 1 Style	Male SAE-ORB
Connection 1 Thread Size (inch)	3/4-16	Connection 2 Style	Female SAE-ORB
Connection 2 Thread Size (inch)	9/16-18	Connection Style	SAE-ORB to SAE-ORB
Body Material	Steel	Connection 4 Size	na
Connection 4 Thread Size	na	Maximum Dynamic Pressure	6000 psi
Dimensional Weight	0.03871402877697842 lb	Fitting Type	Port Adapter
