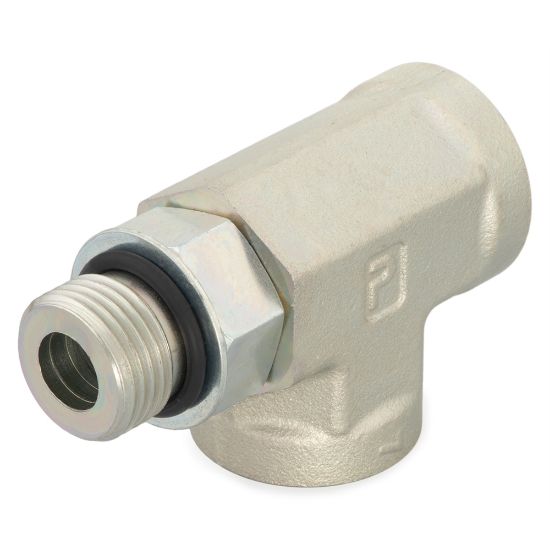

8 AOG5JG5-S FKM - Pipe Fittings and Port Adapters

Parker's Pipe Fittings and Port Adapters product line offers a wide range of thread types and high static pressure ratings.

Availability:	Backordered Estimated Lead Time: 38 days
Partner Available:	Backordered

SKU 8 AOG5JG5-S FKM

$92.10/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Shape	Tee
Length (inch)	na	Body Material	Steel
Connection 1 Thread Size (mm)	na	Connection 2 Thread Size (mm)	na
O-Ring Material	90 Durometer Fluorocarbon	Connection 1 Style	Male SAE-ORB
Connection 1 Thread Size (inch)	3/4-16	Connection 2 Style	Female SAE-ORB
Connection 2 Thread Size (inch)	3/4-16	Connection Style	Straight Thread Run Tee
Connection 3 Style	Female SAE-ORB	Connection 3 Thread Size (inch)	3/4-16
Body Material	Steel	Connection 4 Size	na
Connection 4 Thread Size	na	Maximum Dynamic Pressure	4000 psi
Fitting Type	Port Adapter

Product resources

Compliance, Certifications & Safety

LR2382882TA-Pipe-and-hose-Adapters (PDF)

Literature and Reference Materials
