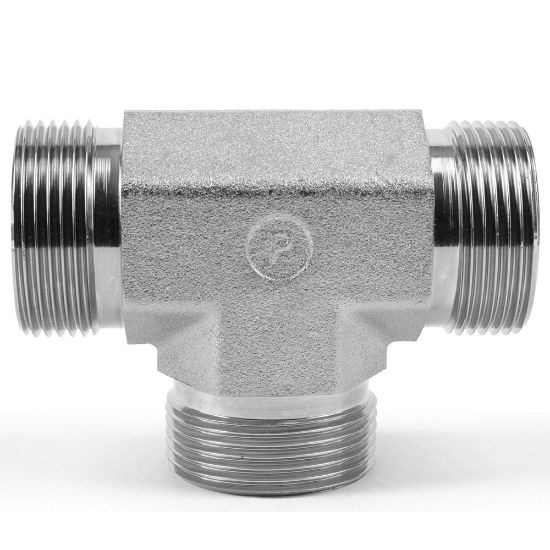

8JMK4S - Pipe Fittings and Port Adapters

Parker's Pipe Fittings and Port Adapters product line offers a wide range of thread types and high static pressure ratings.

Availability:	Backordered Estimated Lead Time: 220 days
Partner Available:	17 in stock

SKU 8JMK4S

$60.75/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	O-Ring Material	na
Connection 2 Style	Male BSPP	Connection 3 Style	Male BSPP
Connection 3 Thread Size (inch)	1/2-14	Length (inch)	na
Connection 1 Thread Size (mm)	na	Connection 2 Thread Size (mm)	na
Connection 1 Thread Size (inch)	1/2-14	Connection Style	BSPP TO BSPP
Connection 2 Thread Size (inch)	1/2-14	Body Material	Steel
Connection 1 Style	Male BSPP	Shape	Tee
Body Material	Steel	Maximum Dynamic Pressure	2900 psi
Fitting Type	Pipe Fitting	Connection 4 Thread Size	na
Connection 4 Size	na

Product resources

Compliance, Certifications & Safety

LR2382882TA-Pipe-and-hose-Adapters (PDF)

Literature and Reference Materials
