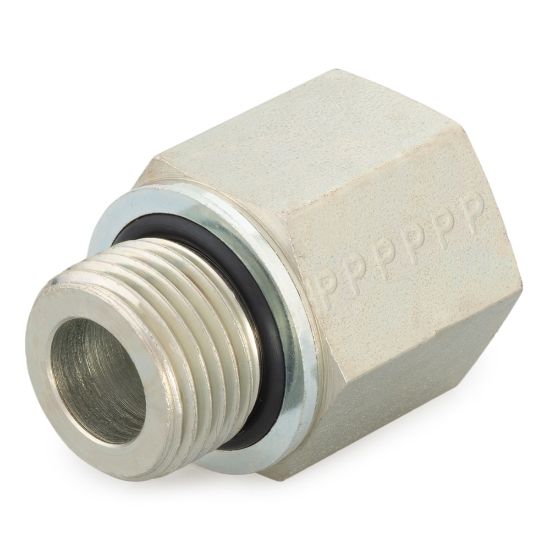

M18-8F8OHG5S - Pipe Fittings and Port Adapters

Name: M18-8F8OHG5S - Pipe Fittings and Port Adapters
SKU: M18-8F8OHG5S
Price: 35.26 USD
Availability: LimitedAvailability

Parker's Pipe Fittings and Port Adapters product line offers a wide range of thread types and high static pressure ratings.

Availability:

1 Limited Stock

Joplin, MO

Partner Available:

42 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU M18-8F8OHG5S

$35.26/each

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 3 Style	na
Connection 2 Thread Size (mm)	na	Connection 3 Thread Size (inch)	na
Connection 2 Style	Female SAE-ORB	Connection 1 Style	Male Metric O-Ring Retaining Ring
Connection Style	Metric O-Ring Retaining Ring to SAE-ORB	Body Material	Steel
Shape	Straight	O-Ring Material	90 Durometer Nitrile
Connection 1 Thread Size (mm)	M18x1.5	Length (inch)	na
Connection 1 Thread Size (inch)	na	Connection 2 Thread Size (inch)	3/4-16
Fitting Type	Pipe Adapter	Connection 4 Thread Size	na
Connection 4 Size	na	Dimensional Weight	0.0031654676258992807 lb
Body Material	Steel	Maximum Dynamic Pressure	3500 psi

Product resources

Compliance, Certifications & Safety

LR2382882TA-Pipe-and-hose-Adapters (PDF)

Literature and Reference Materials
