Plastic Barbed Fittings, Parker Par-Barbs - 322HB-2PP

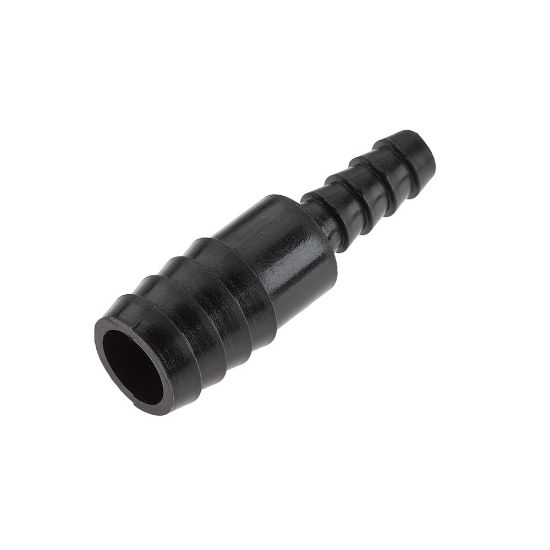

Name: Plastic Barbed Fittings, Parker Par-Barbs - 322HB-2PP
SKU: 322HB-2PP

Parker's Par-Barb fttings are specially engineered with a four-barb design that generates maximum gripping and sealing power when combined with a hose clamp.

Availability:

Backordered

SKU 322HB-2PP

$1.23

Products specifications

Attribute name	Attribute value
UOM	EA	Color	Black
Connection 1 Size	1/8"	Connection 2 Size	1/8"
Connection 2 Type	Barb	Configuration	Barb to Barb
Connection 1 Style	Barb	Connection 1 Hose I.D. (inch)	1/8" (I.D.)
Shape	Union	Body Material	Polypropylene, Black
Connection 3 Size	N/A	Connection 3 Type	N/A
Connection 1 Type	Barbed	Connection 2 Hose I.D. (inch)	1/8" (I.D.)
Brand	PARKER	Division	Fluid System Connectors Division
Division	Fluid System Connectors Division	Technology	Fluid & Gas Handling
Color	Black	Body Material	Polypropylene
Compatible Tube	Vinyl	Connection 2 Size	1/8
Connection 3 Size	N/A	Connection 3 Type	N/A
Vacuum Pressure Rating	-29	Maximum Operating Pressure	125 psi
Maximum Operating Temperature	104 °C	Minimum Operating Temperature	10 °F
Specifications Met	FDA, NSF-51	Media	Water, Air, Other Compatible Fluids
Application	Chemical Dispensing, Pneumatic Systems, Food Processing, Beverage Dispensing	Tube Material	Vinyl, Polyurethane, Rubber Hose
Connection 1 Size	1/8	Shape	Connector
Configuration	Tube to Tube	Connection 1 Type	Barbed
Connection 2 Type	Barbed
