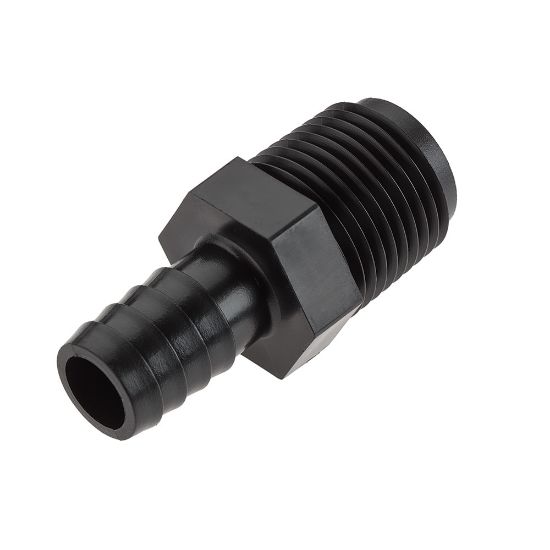

325HB-10-8PP - Plastic Barbed Fittings, Parker Par-Barbs

Parker's Par-Barb fttings are specially engineered with a four-barb design that generates maximum gripping and sealing power when combined with a hose clamp.

Availability:	Backordered Estimated Lead Time: 36 days
Partner Available:	Backordered

SKU 325HB-10-8PP

$0.69/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Shape	Connector
Color	Black	Connection 2 Size	1/2"
Connection 2 Type	Male Pipe	Connection 1 Style	Barb
Configuration	Barb to Pipe	Product Style	Connector
Connection 2 Thread Size	1/2"	Connection 1 Hose I.D. (inch)	5/8" (I.D.)
Connection 2 Hose I.D. (inch)	n/a	Connection 1 Size	5/8"
Body Material	Polypropylene, Black	Connection 3 Size	N/A
Connection 3 Type	N/A	Connection 1 Type	Barbed
Media	Water	Specifications Met	FDA
Color	Black	Body Material	Polypropylene
Maximum Operating Temperature	220 °F	For Fluid Type	Other Compatible Fluids
Compatible Tube	Vinyl	Connection 2 Size	1/2
Connection 3 Size	N/A	Connection 3 Type	N/A
Vacuum Pressure Rating	-29	Maximum Operating Pressure	125 psi
Minimum Operating Temperature	-12 °C	Connection 2 Type	Male NPT
Shape	Connector	Configuration	Tube to Pipe
Connection 1 Size	5/8	Connection 1 Type	Barbed
