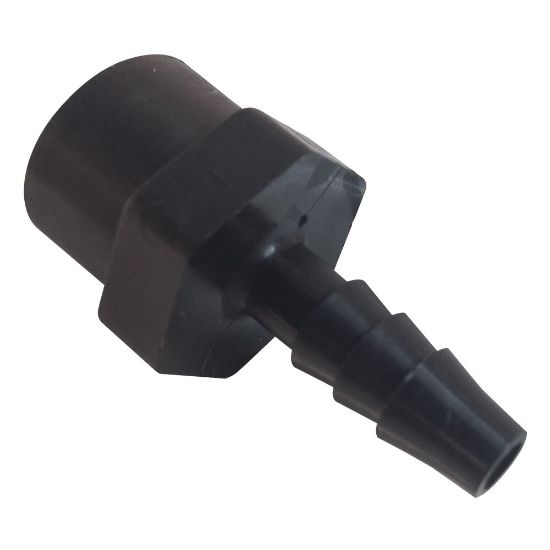

326HB-10-6PP - Plastic Barbed Fittings, Parker Par-Barbs

Parker's Par-Barb fttings are specially engineered with a four-barb design that generates maximum gripping and sealing power when combined with a hose clamp.

Availability:	Backordered Estimated Lead Time: 25 days
Partner Available:	Backordered

SKU 326HB-10-6PP

Products specifications

Attribute name	Attribute value
UOM	EA	Shape	Connector
Color	Black	Connection 2 Size	3/8"
Connection 2 Type	Female Pipe	Connection 1 Style	Barb
Configuration	Barb to Female Pipe	Product Style	Connector
Connection 2 Thread Size	3/8"	Connection 1 Hose I.D. (inch)	5/8" (I.D.)
Connection 2 Hose I.D. (inch)	n/a	Connection 1 Size	5/8"
Body Material	Polypropylene, Black	Connection 3 Size	N/A
Connection 3 Type	N/A	Connection 1 Type	Barbed
Connection 2 Type	Female NPT	Media	Water
Specifications Met	FDA	Color	Black
Body Material	Polypropylene	For Fluid Type	Other Compatible Fluids
Compatible Tube	Vinyl	Connection 2 Size	3/8
Connection 3 Size	N/A	Connection 3 Type	N/A
Vacuum Pressure Rating	-29	Maximum Operating Pressure	125 psi
Maximum Operating Temperature	104 °C	Minimum Operating Temperature	-12 °C
Shape	Connector	Configuration	Tube to Pipe
Connection 1 Size	5/8	Connection 1 Type	Barbed
