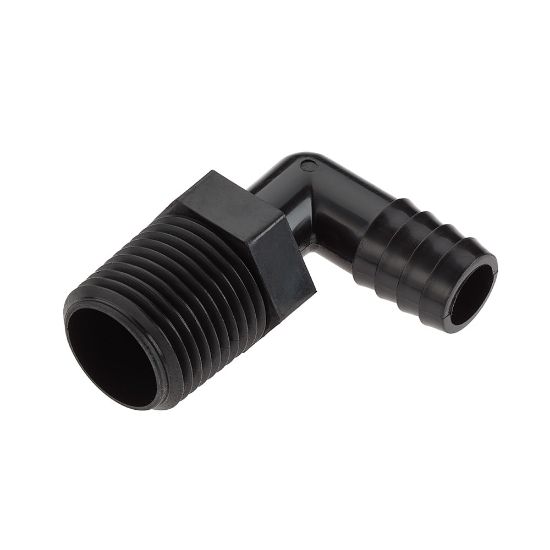

Plastic Barbed Fittings, Parker Par-Barbs - 329HB-4-8PP

Name: Plastic Barbed Fittings, Parker Par-Barbs - 329HB-4-8PP
SKU: 329HB-4-8PP

Parker's Par-Barb fttings are specially engineered with a four-barb design that generates maximum gripping and sealing power when combined with a hose clamp.

Availability:

Backordered

SKU 329HB-4-8PP

$1.12

Products specifications

Attribute name	Attribute value
UOM	EA	Color	Black
Shape	Elbow 90°	Connection 1 Size	1/4"
Connection 2 Size	1/2"	Connection 2 Type	Male Pipe
Connection 1 Style	Barb	Connection 1 Hose I.D. (inch)	1/4" (I.D.)
Configuration	Barb to Pipe	Connection 2 Thread Size	1/2"
Connection 2 Hose I.D. (inch)	n/a	Body Material	Polypropylene, Black
Connection 3 Size	N/A	Connection 3 Type	N/A
Connection 1 Type	Barbed	Brand	PARKER
Division	Fluid System Connectors Division	Division	Fluid System Connectors Division
Technology	Fluid & Gas Handling	Connection 1 Size	1/4
Media	Water	Shape	90° Elbow
Specifications Met	FDA	Color	Black
For Fluid Type	Water	Application	Food Processing
Body Material	Polypropylene	Compatible Tube	Vinyl
Connection 2 Size	1/2	Connection 3 Size	N/A
Connection 3 Type	N/A	Vacuum Pressure Rating	-29
Maximum Operating Pressure	8.5 bar	Maximum Operating Temperature	104 °C
Minimum Operating Temperature	-12 °C	Connection 2 Type	Male NPT
Configuration	Tube to Pipe	Connection 1 Type	Barbed
