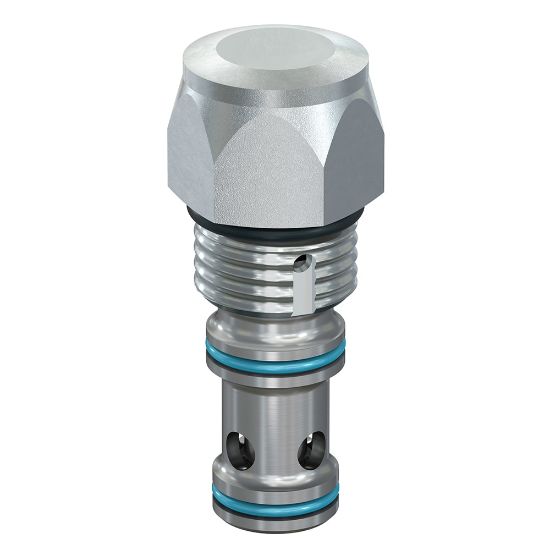

Picture of Poppet Type Logic Element - 10SLC1-A-50V

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Poppet Type Logic Element - 10SLC1-A-50V

Parker logic elements are screw-in type cartridge valves that can be used to control flow, pressure, or direction up to 303 lpm and 240 bar, and when applied in the proper arrangements, can perform multi-task control functions.
Availability:
Backordered
SKU 10SLC1-A-50V
$122.89
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEASeal MaterialFluorocarbon
Flow Rate15 GAL/MIN, 57 L/MINConfigurationPilot to Close
Switching Pressure50 PSI, 3.5 BARMaximum Operating Temperature204 °C
Seal MaterialFluorocarbonBody Materialn/a
FunctionLogic ValveFlow Rate57 L/min
DivisionHydraulic Cartridge Systems DivisionFor Fluid TypeMineral-based Hydraulic Fluids
Operating Temperature-26 to 204 °CVentedn/a
Weight0.14 kgDivisionHydraulic Systems Division
Leak Rate5Cavity SizeC10-3S
ConfigurationNormally Closed (NC)Actuation TypePilot to Close
Flow DirectionBi-directionalOperation TypePilot Operated
Pilot LocationExternalValve MaterialSteel
Maximum Flow Rate15 Gal/minSwitching Pressure3.5 bar
Installation Torque16 lb-ftFilter Efficiency RatingISO 4406 18/16/13
Maximum Operating Pressure240 barMaximum Kinematic Viscosity45-2000 SSU (6 to 420 cSt)
Maximum Inlet Pressure Rating3500 psiMinimum Operating Temperature-15 °F
