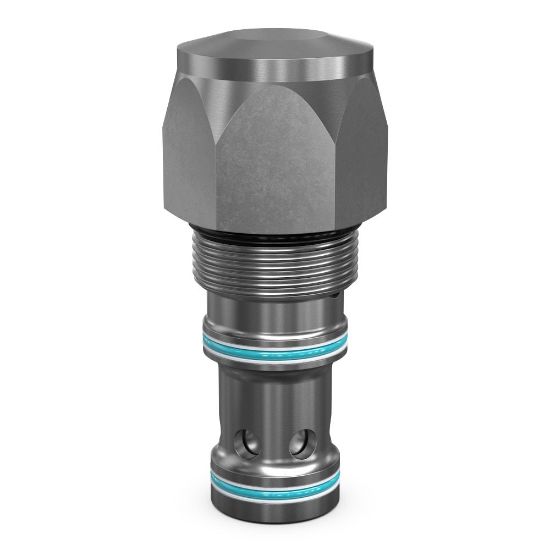

20SLC1-A-75 - Poppet Type Logic Element

Parker logic elements are screw-in type cartridge valves that can be used to control flow, pressure, or direction up to 303 lpm and 240 bar, and when applied in the proper arrangements, can perform multi-task control functions.

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU 20SLC1-A-75

$197.93/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Polyurethane EPS
Configuration	Pilot to Close	Switching Pressure	75 PSI, 5.2 BAR
Flow Rate	80 GAL/MIN, 303 L/MIN	Maximum Operating Temperature	107 °C
Body Material	n/a	Function	Logic Valve
For Fluid Type	Synthetic Hydraulic Fluids	Vented	n/a
Leak Rate	5	Configuration	Normally Closed (NC)
Seal Material	Polyurethane EPS	Actuation Type	Pilot to Close
Flow Direction	Bi-directional	Operation Type	Pilot Operated
Pilot Location	External	Valve Material	Steel
Switching Pressure	75 psi	Filter Efficiency Rating	ISO 4406 18/16/13
Maximum Operating Pressure	3500 psi	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Maximum Inlet Pressure Rating	240 bar	Minimum Operating Temperature	-35 °F
Weight	1.78 lb	Flow Rate	80 Gal/min
Cavity Size	C20-3S	Maximum Flow Rate	303 L/min
Installation Torque	113 Nm
