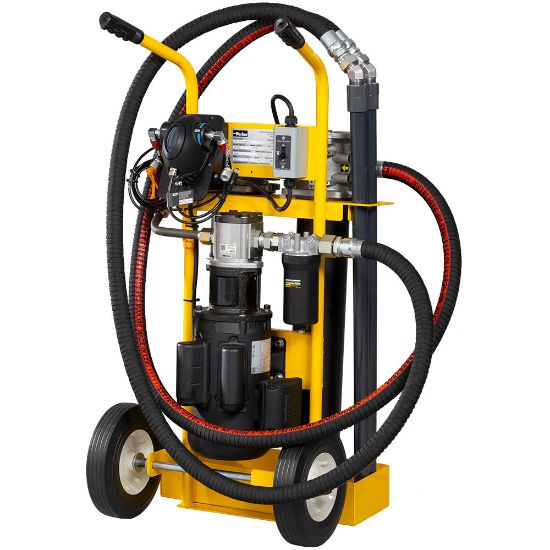

10PFCC220Q10QBVPIPDL - Portable Fluid Conditioning Cart

Parker Portable Fluid Conditioning Carts are the most economical way to protect your system from contamination. The Intelli-Cart™ includes the icountPD which provides an excellent method for trending contamination levels and filtering.

Availability:	Backordered Estimated Lead Time: 54 days
Partner Available:	Backordered

SKU 10PFCC220Q10QBVPIPDL

$9,809.99/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Inlet Filter Element	20Q Microglass
Outlet Filter Element	10Q Microglass	Interface Option	Particle Detector
Maximum Flow Rate	10 gpm (38 lpm)	Weight	145 lbs (65.8 kg)
Compatible Element	Stage 1 - 937400Q; Stage 2 - 937399Q	Electrical Requirements	110/220 volts, 60 Hz Single phase, 10/5.5 amps
Maximum Kinematic Viscosity	215.0 cSt	Maximum Operating Temperature	150.0 °F
Seal Material	Nitrile	Indicator Type	Visual indicator, 3-band (mounted on both stages)
Bypass Option Included	35 PSID (2.4 bar)<br/>(on both elements)	Maximum Pressure Rating	10.3 bar
