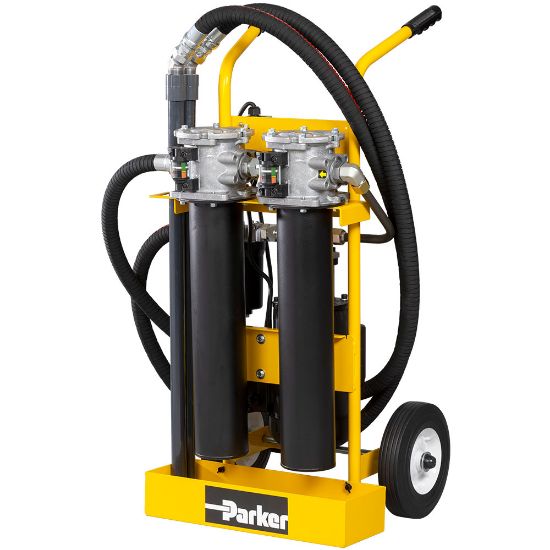

10PFCC2XXBVPI1 - Portable Fluid Conditioning Cart

Parker Portable Fluid Conditioning Carts are the most economical way to protect your system from contamination. The Intelli-Cart™ includes the icountPD which provides an excellent method for trending contamination levels and filtering.

Availability:	Backordered Estimated Lead Time: 39 days
Partner Available:	Backordered

SKU 10PFCC2XXBVPI1

$3,470.70/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Inlet Filter Element	see catalog for options
Outlet Filter Element	see catalog for options	Interface Option	None
Maximum Flow Rate	10 gpm (38 lpm)	Weight	145 lbs (65.8 kg)
Compatible Element	see catalog for options	Electrical Requirements	110/220 volts, 60 Hz Single phase, 10/5.5 amps
Maximum Kinematic Viscosity	1000.0 SUS	Maximum Operating Temperature	150.0 °F
Seal Material	Nitrile	Indicator Type	Visual indicator, 3-band (mounted on both stages)
Bypass Option Included	35 PSID (2.4 bar)<br/>(on both elements)	Maximum Pressure Rating	150 psi
