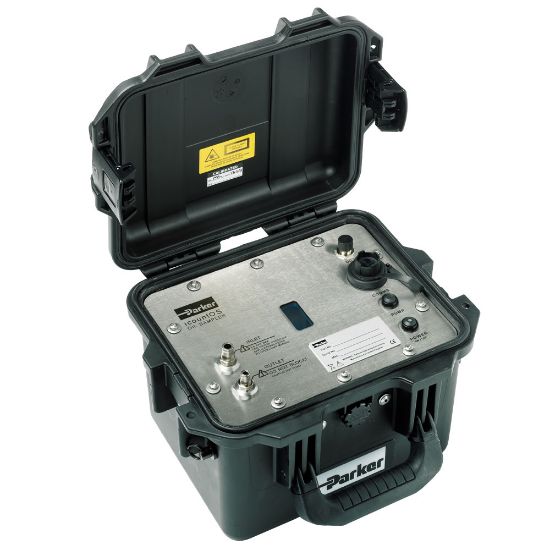

IOS1210US - Portable Particle Monitor – iCountOS

The iCountOS is a highly rugged portable particle size monitor that can be used for measuring contamination levels in fuels and/or hydraulic fluids. Capable of operation online (direct connection to system) or offline (sampling from tank or reservoir).

Availability:	Backordered Estimated Lead Time: 80 days
Partner Available:	Backordered

SKU IOS1210US

$11,068.63/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Electrical Connection	US
Fluid Type	Oil	Connection Style	Offline
Communication Interface	RJ45 LAN Cable	Body Material	Brass
For Fluid Type	Oil	Seal Material	Fluorocarbon
Industry	Off-road Machinery	Maximum Fluid Temperature	80 °C
Product Style	Particle Detector/Counter	Sensing Method	Laser
Minimum Fluid Temperature	5 °C	Cycle Time	30 second
Signal Output	RS232	Calibration Type	MTD
Operating Pressure	35 to 5000 psi	Specifications Met	IP68
Height	195 mm	Weight	5.5 kg
Accuracy	+/- 1 ISO code	Flow Rate	60 ml/min
Operating Humidity	5 to 100% (RH)	Inlet Connection Size	6 mm
Outlet Connection Size	4 mm	Communication Interface	RJ45 LAN Cable
Electrical Requirements	12V Rechargeable Battery	Maximum Ambient Temperature	176 °F
Maximum Kinematic Viscosity	300 cSt	Minimum Ambient Temperature	-40 °C

Product resources

Compliance, Certifications & Safety

SAFETY-iCountOS-Declaration-of-Conformity (PDF)

Literature and Reference Materials
