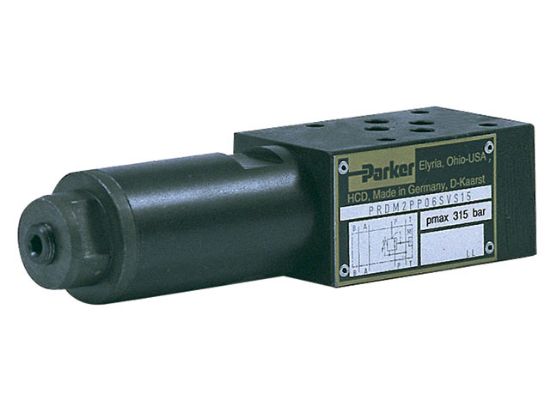

PRDM2AA16SNS - PRDM Series - Pressure Reducing - NFPA D03 (CETOP 3, NG 6)

PRDM Series - Pressure Reducing Parker Manapak Subplate Sandwich Module

Availability:	Backordered Estimated Lead Time: 115 days
Partner Available:	2 Limited Stock

SKU PRDM2AA16SNS

$735.00/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Controlled Ports	A Port
Pkg Qty	1	Pressure Range	44 to 2320 PSI (3 to 160 Bar)
Adjustment Type	Screw	Gauge Port Size	4 SAE
Seals	Buna-N (Nitrile)	UOM	EA
Max Flow (at 3000 PSI)	10.5 GPM (40 LPM)	Series	PRDM
Max Flow (at 3000 PSI)	10.5 GPM (40 LPM)	Parker Group	Hydraulic
Adjustment Type	Screw	Subplate Pattern	NFPA D03 (CETOP 3, NG 6)
Port Type	SAE	Controlled Ports	A Port
Port Size	4 SAE	Max Pressure	5000 PSI (350 Bar)
Pressure Range	44 to 2320 PSI (3 to 160 Bar)	Seals	Buna-N (Nitrile)
Parker Division	Hydraulic Valve

Product resources

Sandwich Valves (PDF)
