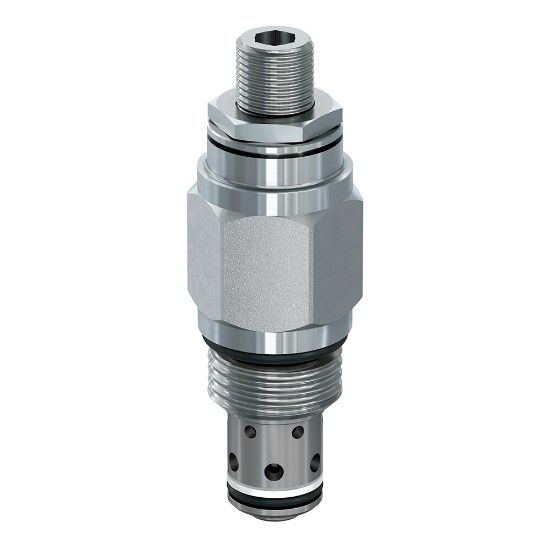

FC101K050 - Pressure Compensated Flow Control Valves

Parker offers a wide range of pressure compensated flow controls for applications that demand constant flow with varying loads and pressures; handling pressures as high as 420 bar (6000 psi) and flows to 56 lpm (15 gpm) in a single common cavity.

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU FC101K050

$167.04/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Adjustment Mechanism	Knob
Seal Material	Nitrile	Standard Flow Rate Setting	0.5 GAL/MIN, 1.9 L/MIN
Maximum Flow Rate	15 GAL/MIN, 56 L/MIN	Configuration	Reverse Check
Flow Rate Display Range	0.3-1 GAL/MIN, 1.1-3.8 L/MIN	Seal Material	Nitrile
Actuation Type	Pressure Compensated	Standard Flow Rate Setting	0.5 Gal/min
Body Material	n/a	Adjustment Mechanism	Knob
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Flow Rate Accuracy	N/A
Maximum Operating Pressure	3500 psi	Flow Rate Display Range	0.3-1 Gal/min
Flow Rate	15 Gal/min	Connection Size	n/a
Weight	0.23 kg	Operation Type	Manually operated
Maximum Inlet Pressure Rating	245 bar	Function	Flow Control
Connection Type	n/a	Configuration	Reverse Check
Installation Torque	22 Nm	Maximum Flow Rate	15 Gal/min
Cavity Size	C10-2	Minimum Operating Temperature	-35 °C
Valve Material	All parts steel. All operating parts hardened steel	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Maximum Operating Temperature	+250 °F	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
