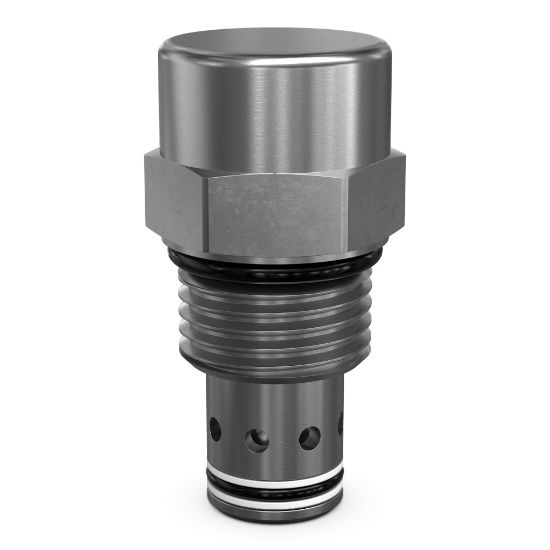

Pressure Compensated Flow Control Valves - FR101F300

Name: Pressure Compensated Flow Control Valves - FR101F300
SKU: FR101F300

Parker offers a wide range of pressure compensated flow controls for applications that demand constant flow with varying loads and pressures; handling pressures as high as 420 bar (6000 psi) and flows to 56 lpm (15 gpm) in a single common cavity.

Availability:

Backordered

SKU FR101F300

$101.79

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Adjustment Mechanism	Fixed	Standard Flow Rate Setting	3 GAL/MIN, 11.3 L/MIN
Flow Rate Display Range	N/A	Configuration	Partial Reverse Flow
Maximum Flow Rate	6 GAL/MIN, 22.5 L/MIN	Seal Material	Nitrile
Connection Size	n/a	Connection Type	n/a
Body Material	n/a	Division	Hydraulic Cartridge Systems Division
Division	Hydraulic Systems Division	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Maximum Inlet Pressure Rating	3500 psi	Maximum Flow Rate	6 Gal/min
Flow Rate	6 Gal/min	Weight	0.5 lb
Minimum Operating Temperature	-35 °C	Function	Flow Control
Operation Type	Automatic	Cavity Size	C10-2
Adjustment Mechanism	Fixed	Maximum Operating Temperature	+250 °F
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Valve Material	All parts steel. All operating parts hardened steel	Actuation Type	Pressure Compensated
Installation Torque	16 (Aluminum), 48 (Steel) lb-ft	Operating Temperature	-35 to +121 °C
Maximum Operating Pressure	245 bar	Standard Flow Rate Setting	3 Gal/min
Configuration	Partial Reverse Flow	Flow Rate Accuracy	15%
Flow Rate Display Range	N/A Gal/min
