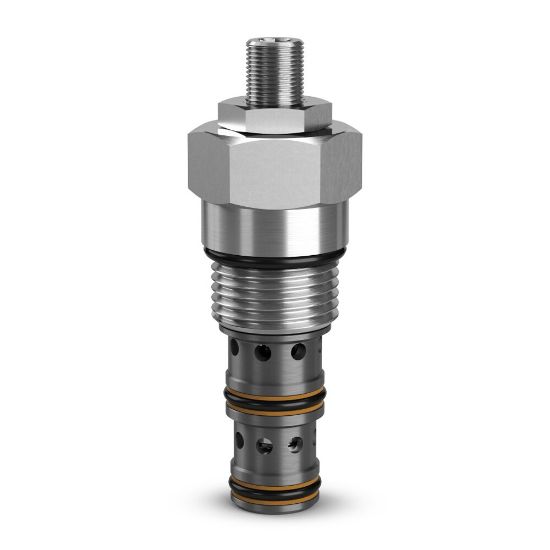

J04D3ZN - Pressure Compensated Priority Flow Control Valves

Name: J04D3ZN - Pressure Compensated Priority Flow Control Valves
SKU: J04D3ZN
Price: 249.57 USD
Availability: InStock

Pressure compensated priority flow control valves maintain constant flow regardless of changes to inlet pressure for flows up to 90 lpm (24 gpm) and pressures up to 420 bar (6000 psi); excess flow is diverted once the priority flow requirement is met.

Availability:

7 in stock

Wichita, KS	5
Olivette, MO	2

Partner Available:

Backordered

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU J04D3ZN

$249.57/each

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Adjustment Mechanism	Screw	Maximum Flow Rate	18 GAL/MIN,70 L/MIN
Flow Rate Display Range	0.5-12 GAL/MIN, 2-45 L/MIN	Standard Flow Rate Setting	5.3 GAL/MIN, 20 L/MIN
Seal Material	Nitrile	Connection Size	n/a
Connection Type	n/a	Body Material	n/a
Maximum Operating Pressure	6000 psi	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Minimum Operating Temperature	-34 °C	Weight	0.18 kg
Adjustment Mechanism	Screw	Maximum Inlet Pressure Rating	6000 psi
Installation Torque	37 lb-ft	Cavity Size	C10-3
Maximum Operating Temperature	+121 °C	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Valve Material	All parts steel. All operating parts hardened steel
Flow Rate Accuracy	N/A	Actuation Type	Pressure Compensated
Operation Type	Manually operated	Configuration	Priority Flow
Function	Flow Regulator Valve	Flow Rate	18 Gal/min
Maximum Flow Rate	12 L/min	Maximum Priority Flow	N/A L/min
Flow Rate Display Range	2-45 L/min	Standard Flow Rate Setting	5.3 Gal/min
Maximum Regulated Flow Rate	12 Gal/min
