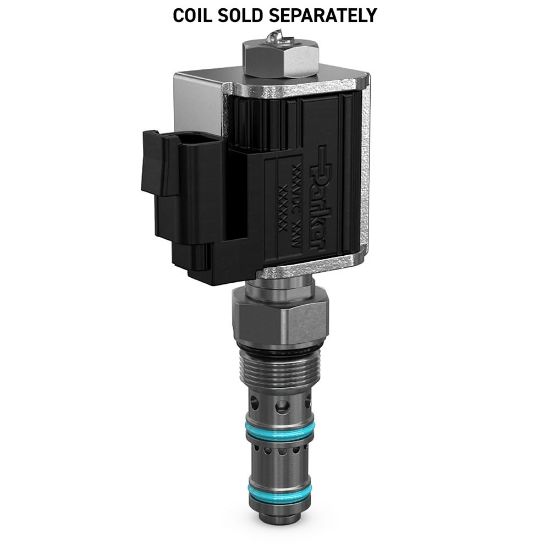

FAPC101C - Pressure Compensated Proportional Poppet Valves

Parker’s family of 2-way proportional poppet valves are available normally-open or normally-closed with a standard integrated pressure compensator; capable of flows up to 83 lpm (22 gpm) and pressures as high as 210 bar (3000 psi).

Availability:	Backordered Estimated Lead Time: 133 days
Partner Available:	Backordered

SKU FAPC101C

$714.40/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Configuration	Normally Closed
Maximum Flow Rate	10 GAL/MIN, 38 L/MIN	Seal Material	D-Ring
Actuation Type	Electrical	Connection Size	n/a
Connection Type	n/a	Body Material	n/a
Flow Rate	38 L/min	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Minimum Operating Temperature	-37 °C	Maximum Operating Temperature	+200 °F
Maximum Operating Pressure	210 bar	Weight	0.52 lb
Maximum Inlet Pressure Rating	3000 psi	Operation Type	Solenoid Operated
Installation Torque	34 Nm	Coil Nut Tightening Torque	4.1 Nm
Maximum Flow Rate	38 L/min	Configuration	Normally Closed
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Frequency	100-400 Hz
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Valve Material	All parts steel. All operating parts hardened steel
Leak Rate	5 @ 3000 PSI (210 BAR) drops/min	Seal Material	D-Ring
Function	Proportional Pressure Compensated Flow Control/Regulator	Cavity Size	3X
Coil Type	5/8" Super Coil Low Watt (CAS)	Hysteresis	< 10%
Flow Direction	Top to Side (3 - 2)	Power Consumption	18 W
Minimum Pressure Differential	500 psi	Current	Max: 1.5 @ 12 VDC, 0.75 @ 24 VDC A
