Pressure Gauges - Reservoir Equipment
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

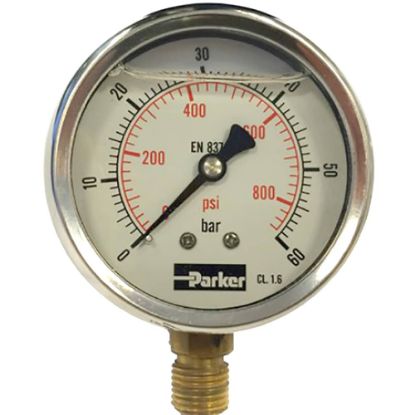

Pressure gauges are used in several applications to give an instant visual indication of system pressure level.
Parker pressure gauges have a stainless steel casing and acrylic glass window. They are filled with 99,7% glycerine.
Features
• Temperature range up to 60°C.
• Accuracy down to 1.0% of full scale.
• IP Class 65.
For more information or a detailed discussion about your specific requirements please contact Parker or an authorised Parker distributor.
Read More...Parker pressure gauges have a stainless steel casing and acrylic glass window. They are filled with 99,7% glycerine.
Features
• Temperature range up to 60°C.
• Accuracy down to 1.0% of full scale.
• IP Class 65.
For more information or a detailed discussion about your specific requirements please contact Parker or an authorised Parker distributor.
| Action | SKU | Availability | Partner Available | Price | UOM | Connection Type | Diameter | Options | Port Size | Operating Pressure | Materials of Construction | Ingress Protection Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PGB0631010 | Backordered | Backordered | $67.59/each | EA | Bottom | 63 mm (2.5 inch) | Bourdon Tube: Phosphor bronze, C-type | G1/4 | 0-10 bar (0-145psi) | Case: BS 304 S15 Stainless Steel<br/>Window: Acrylic<br/>Movement: Brass<br/>Dial: White Aluminium<br/>Pointer: Black Aluminium <br/> | IP 65 | |
| PGB0631025 | Backordered | Backordered | $67.59/each | EA | Bottom | 63 mm (2.5 inch) | Bourdon Tube: Phosphor bronze, C-type | G1/4 | 0-25 bar (0-232 psi) | Case: BS 304 S15 Stainless Steel<br/>Window: Acrylic<br/>Movement: Brass<br/>Dial: White Aluminium<br/>Pointer: Black Aluminium <br/> | IP 65 | |
| PGB0631060 | Backordered | 1 Limited Stock | $67.59/each | EA | Bottom | 63 mm (2.5 inch) | Bourdon Tube: Phosphor bronze, C-type | G1/4 | 0-60 bar (0-870 psi) | Case: BS 304 S15 Stainless Steel<br/>Window: Acrylic<br/>Movement: Brass<br/>Dial: White Aluminium<br/>Pointer: Black Aluminium <br/> | IP 65 | |
| PGB0631100 | Backordered | Backordered | $67.59/each | EA | Bottom | 63 mm (2.5 inch) | Bourdon Tube: Phosphor bronze, C-type | G1/4 | 0-100 bar (0-1450 psi) | Case: BS 304 S15 Stainless Steel<br/>Window: Acrylic<br/>Movement: Brass<br/>Dial: White Aluminium<br/>Pointer: Black Aluminium <br/> | IP 65 | |
| PGB0631160 | Backordered | Backordered | $67.59/each | EA | Bottom | 63 mm (2.5 inch) | Bourdon Tube: Phosphor bronze, helical type | G1/4 | 0-160 bar (0-2320 psi) | Case: BS 304 S15 Stainless Steel<br/>Window: Acrylic<br/>Movement: Brass<br/>Dial: White Aluminium<br/>Pointer: Black Aluminium <br/> | IP 65 | |
| PGB0631250 | Backordered | Backordered | $67.59/each | EA | Bottom | 63 mm (2.5 inch) | Bourdon Tube: Phosphor bronze, helical type | G1/4 | 0-250 bar (0-3625 psi) | Case: BS 304 S15 Stainless Steel<br/>Window: Acrylic<br/>Movement: Brass<br/>Dial: White Aluminium<br/>Pointer: Black Aluminium <br/> | IP 65 | |
| PGB0631600 | Backordered | Backordered | $67.59/each | EA | Bottom | 63 mm (2.5 inch) | Bourdon Tube: Phosphor bronze, helical type | G1/4 | 0-600 bar (0-8702 psi) | Case: BS 304 S15 Stainless Steel<br/>Window: Acrylic<br/>Movement: Brass<br/>Dial: White Aluminium<br/>Pointer: Black Aluminium <br/> | IP 65 | |
| PGB1001100 | Backordered | Backordered | $198.41/each | EA | Bottom | 100 mm (4 inch) | Bourdon Tube: Phosphor bronze, C-type | G1/2 | 0-100 bar (0-1450 psi) | |||
| PGC0631016 | Backordered | Backordered | $83.97/each | EA | Panel mounting | 63 mm (2.5 inch) | Bourdon Tube: Phosphor bronze, C-type | G1/4 | 0-16 bar (0-87 psi) | Case: BS 304 S15 Stainless Steel<br/>Window: Acrylic<br/>Movement: Brass<br/>Dial: White Aluminium<br/>Pointer: Black Aluminium <br/> | IP 65 | |
| PGC0631025 | Backordered | Backordered | $83.97/each | EA | Panel mounting | 63 mm (2.5 inch) | Bourdon Tube: Phosphor bronze, C-type | G1/4 | 0-25 bar (0-232 psi) | Case: BS 304 S15 Stainless Steel<br/>Window: Acrylic<br/>Movement: Brass<br/>Dial: White Aluminium<br/>Pointer: Black Aluminium <br/> | IP 65 | |
| PGC0631060 | Backordered | Backordered | $83.97/each | EA | Panel mounting | 63 mm (2.5 inch) | Bourdon Tube: Phosphor bronze, C-type | G1/4 | 0-60 bar (0-870 psi) | Case: BS 304 S15 Stainless Steel<br/>Window: Acrylic<br/>Movement: Brass<br/>Dial: White Aluminium<br/>Pointer: Black Aluminium <br/> | IP 65 | |
| PGC0631100 | Backordered | Backordered | $83.97/each | EA | Panel mounting | 63 mm (2.5 inch) | Bourdon Tube: Phosphor bronze, C-type | G1/4 | 0-100 bar (0-1450 psi) | Case: BS 304 S15 Stainless Steel<br/>Window: Acrylic<br/>Movement: Brass<br/>Dial: White Aluminium<br/>Pointer: Black Aluminium <br/> | IP 65 | |
| PGC0631160 | Backordered | Backordered | $83.97/each | EA | Panel mounting | 63 mm (2.5 inch) | Bourdon Tube: Phosphor bronze, helical type | G1/4 | 0-160 bar (0-2320 psi) | Case: BS 304 S15 Stainless Steel<br/>Window: Acrylic<br/>Movement: Brass<br/>Dial: White Aluminium<br/>Pointer: Black Aluminium <br/> | IP 65 | |
| PGC0631250 | Backordered | Backordered | $83.97/each | EA | Panel mounting | 63 mm (2.5 inch) | Bourdon Tube: Phosphor bronze, helical type | G1/4 | 0-250 bar (0-3625 psi) | Case: BS 304 S15 Stainless Steel<br/>Window: Acrylic<br/>Movement: Brass<br/>Dial: White Aluminium<br/>Pointer: Black Aluminium <br/> | IP 65 | |
| PGC0631400 | Backordered | Backordered | $83.97/each | EA | Panel mounting | 63 mm (2.5 inch) | Bourdon Tube: Phosphor bronze, helical type | G1/4 | 0-400 bar (0-5801 psi) | Case: BS 304 S15 Stainless Steel<br/>Window: Acrylic<br/>Movement: Brass<br/>Dial: White Aluminium<br/>Pointer: Black Aluminium <br/> | IP 65 | |
| PGC0631600 | Backordered | Backordered | $83.97/each | EA | Panel mounting | 63 mm (2.5 inch) | Bourdon Tube: Phosphor bronze, helical type | G1/4 | 0-600 bar (0-8702 psi) | Case: BS 304 S15 Stainless Steel<br/>Window: Acrylic<br/>Movement: Brass<br/>Dial: White Aluminium<br/>Pointer: Black Aluminium <br/> | IP 65 | |
| PGF0631040 | Backordered | Backordered | $87.98/each | EA | Panel Mounting / 3-Hole Flange | 63 mm (2.5 inch) | Bourdon Tube: Phosphor bronze, C-type | G1/4 | 0-40 bar (0-580 psi) | Case: BS 304 S15 Stainless Steel<br/>Window: Acrylic<br/>Movement: Brass<br/>Dial: White Aluminium<br/>Pointer: Black Aluminium <br/> | IP 65 | |
| PGF0631100 | Backordered | Backordered | $87.55/each | EA | Panel Mounting / 3-Hole Flange | 63 mm (2.5 inch) | Bourdon Tube: Phosphor bronze, C-type | G1/4 | 0-100 bar (0-1450 psi) | Case: BS 304 S15 Stainless Steel<br/>Window: Acrylic<br/>Movement: Brass<br/>Dial: White Aluminium<br/>Pointer: Black Aluminium <br/> | IP 65 | |
| PGF0631160 | Backordered | Backordered | $87.98/each | EA | Panel Mounting / 3-Hole Flange | 63 mm (2.5 inch) | Bourdon Tube: Phosphor bronze, helical type | G1/4 | 0-160 bar (0-2320 psi) | Case: BS 304 S15 Stainless Steel<br/>Window: Acrylic<br/>Movement: Brass<br/>Dial: White Aluminium<br/>Pointer: Black Aluminium <br/> | IP 65 | |
| PGF0631250 | Backordered | Backordered | $87.98/each | EA | Panel Mounting / 3-Hole Flange | 63 mm (2.5 inch) | Bourdon Tube: Phosphor bronze, helical type | G1/4 | 0-250 bar (0-3625 psi) | Case: BS 304 S15 Stainless Steel<br/>Window: Acrylic<br/>Movement: Brass<br/>Dial: White Aluminium<br/>Pointer: Black Aluminium <br/> | IP 65 |
