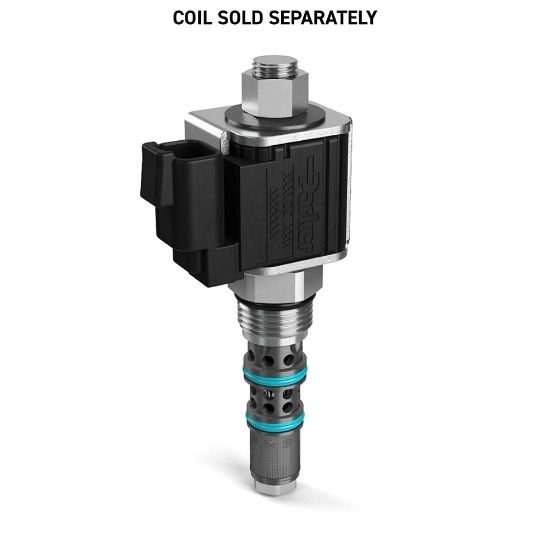

EPR111C20 - Pressure Reducing Proportional Valves

Parker’s selection of proportional pressure reducing valves are for pressure sensitive applications and are capable of flows up to 37 lpm (10 gpm) and pressures as high as 210 bar (3000 psi).

Availability:	Backordered Estimated Lead Time: 54 days
Partner Available:	Backordered

SKU EPR111C20

$188.36/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Override Functionality	N/A
Maximum Inlet Pressure Rating	5000 PSI, 350 BAR	Seal Material	D-Ring (Standard)
Configuration	Pressure Reducing/Relieving	Maximum Flow Rate	10 GAL/MIN, 37.5 L/MIN
Wire Mesh Screen Included	N/A	Maximum Regulating Pressure	2000 PSI, 138 BAR
Actuation Type	Electrical	Body Material	n/a
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Minimum Operating Temperature	-35 °F
Cavity Size	C10-3L	Override Functionality	n/a
Maximum Operating Pressure	350 bar	Wire Mesh Screen Included	n/a
Maximum Inlet Pressure Rating	5000 psi	Seal Material	D-Ring (Standard)
Operation Type	Solenoid Operated	Configuration	Pressure Reducing/Relieving
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Hysteresis	4%
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Valve Material	All parts steel. All operating parts hardened steel
Mounting Type	Screw in cartridge valve	Maximum Operating Temperature	+93 °C
Weight	0.59 kg	Coil Type	1/2" Super Coil Low Watt (CCS)
Installation Torque	37-41 lb-ft	Maximum Tank Pressure	N/A psi
Current	0.9 at 12VDC, 0.45 at 24VDC A	Function	Proportional Pressure Reducing
Flow Rate	37.5 L/min	Frequency	200-600 Hz
Leak Rate	492 @ 300 PSI (21 BAR), 946 @ 3000 PSI (210 BAR) cm3/min	Response Time	N/A ms
Flow Direction	Inlet port 1, Reducing port 2, Tank port 3	Maximum Flow Rate	37.5 L/min
Power Consumption	9 @ Max Reduced Pressure W	Maximum Drain Flow Rate	N/A cm3/min
Maximum Pressure Setting	N/A psi	Coil Nut Tightening Torque	7-9.5 Nm
Maximum Regulating Pressure	138 bar
