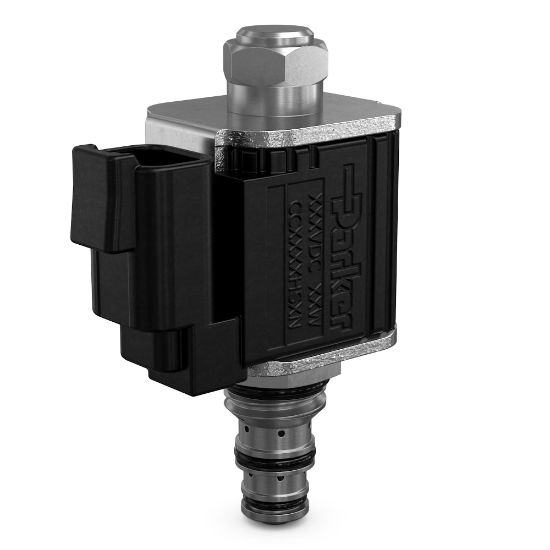

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

GP01301N - Pressure Reducing Proportional Valves

Parker’s selection of proportional pressure reducing valves are for pressure sensitive applications and are capable of flows up to 37 lpm (10 gpm) and pressures as high as 210 bar (3000 psi).

Availability:	Backordered Estimated Lead Time: 421 days
Partner Available:	Backordered

SKU GP01301N

$276.13/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Maximum Inlet Pressure Rating	3000 PSI, 210 BAR	Wire Mesh Screen Included	N/A
Configuration	Bottom Cylinder Port	Maximum Flow Rate	0.5 GAL/MIN, 1.9 L/MIN
Override Functionality	Manual Override	Maximum Regulating Pressure	250 PSI, 17 BAR Standard, or 320 PSI, 22 BAR High Pressure
Maximum Operating Pressure	3000 psi	Seal Material	Nitrile
Body Material	n/a	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Minimum Operating Temperature	-34 °C	Weight	0.08 kg
Wire Mesh Screen Included	n/a	Actuation Type	Electrical, Manual
Maximum Operating Temperature	+250 °F	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Frequency	100-400 Hz	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Operation Type	Solenoid operated, Manually operated	Valve Material	All parts steel. All operating parts hardened steel
Maximum Inlet Pressure Rating	210 bar	Mounting Type	Screw in cartridge valve
Function	Proportional Pressure Reducing	Flow Direction	Inlet port 2, Reducing port 1, Tank port 3
Maximum Pressure Setting	N/A psi	Installation Torque	20 lb-ft
Coil Nut Tightening Torque	Finger Tight Nm	Configuration	Bottom Cylinder Port
Coil Type	1/2" Super Coil High Watt (CCP), 1/2" Super Coil Low Watt (CCS)	Hysteresis	2%
Cavity Size	54-1	Override Functionality	Manual Override
Current	1.1 at 12VDC (Low watt), 1.4 at 12VDC (High watt), 0.6 at 24VDC (Low watt), 0.7 at 24VDC (High watt) A	Flow Rate	1.9 L/min
Leak Rate	N/A cm3/min	Response Time	10 (Off), 30 (On) ms
Maximum Flow Rate	0.5 Gal/min	Power Consumption	14, 19 W
Maximum Tank Pressure	440 psi	Maximum Drain Flow Rate	5 De-Energized, 200 In Regulating Zone @ 1000 PSI (68 BAR) cm3/min
Maximum Regulating Pressure	17 (Low Watt), 22 (High Watt) bar
