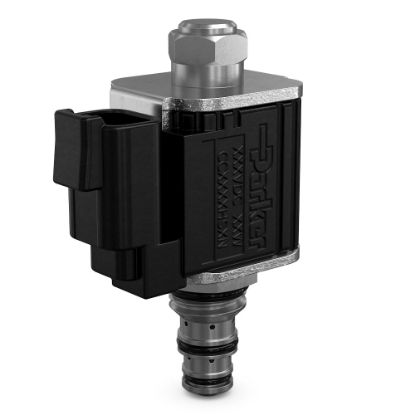

Pressure Reducing Proportional Valves
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker’s family of proportional pressure reducing valves give the operator reliable performance for applications that require pressure limitation. These valves are capable of handling flows up to 37 lpm (10 gpm) and pressures as high as 210 bar (3000 psi). Parker’s proportional pressure reducing valves are ideal for pilot control or functions such as cylinders where there may be a risk of buckling due to over-pressurization, and can be paired with any Current Controlled Pulse Width Modulation (PWM) valve driver. The simple and compact design enables these valves to be used on a variety of equipment within the mobile, industrial, or manufacturing markets.
Markets:
• Miscellaneous Industrial
• Miscellaneous Manufacturing
• Miscellaneous Mobile
Features/Benefits:
• Low hysteresis
• One piece cartridge housing
• Non-magnetic spool and housing assembly
Applications:
• Pilot control
• Applications sensitive to over-pressurization
Additional Technical Insight:
Recommended to be used with a Current Controlled Pulse Width Modulation (PWM) valve driver.
Read More...Markets:
• Miscellaneous Industrial
• Miscellaneous Manufacturing
• Miscellaneous Mobile
Features/Benefits:
• Low hysteresis
• One piece cartridge housing
• Non-magnetic spool and housing assembly
Applications:
• Pilot control
• Applications sensitive to over-pressurization
Additional Technical Insight:
Recommended to be used with a Current Controlled Pulse Width Modulation (PWM) valve driver.
| Action | SKU | Availability | Partner Available | Price | UOM | Seal Material | Maximum Inlet Pressure Rating | Maximum Flow Rate | Wire Mesh Screen Included | Configuration | Override Functionality | Maximum Regulating Pressure | Maximum Operating Pressure | Seal Material | Body Material | Maximum Kinematic Viscosity | Minimum Operating Temperature | Weight | Maximum Flow Rate | Flow Rate | Wire Mesh Screen Included | Maximum Inlet Pressure Rating | Coil Type | Power Consumption | Coil Nut Tightening Torque | Cavity Size | Actuation Type | Maximum Operating Temperature | Filter Efficiency Rating | Frequency | For Fluid Type | Operation Type | Valve Material | Override Functionality | Mounting Type | Maximum Tank Pressure | Function | Maximum Pressure Setting | Installation Torque | Leak Rate | Response Time | Current | Hysteresis | Configuration | Flow Direction | Maximum Drain Flow Rate | Maximum Regulating Pressure |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| GTP02340351V | Backordered | Backordered | $313.49/each | EA | Fluorocarbon | 3000 PSI, 210 BAR | 5 GAL/MIN, 19 L/MIN | Yes | Side Cylinder Port | Infinite Control | 270-375 PSI, 19-26 BAR | 3000 psi | Fluorocarbon | n/a | 45-2000 SSU (6 to 420 cSt) | -15 °F | 0.08 kg | 19 L/min | 19 L/min | Yes | 3000 psi | 1/2" Super Coil High Watt (CCP) | 19 W | 4.1 Nm | C08-3 | Electrical, Manual | +400 °F | ISO 4406 18/16/13, SAE Class 4 | 100-400 Hz | Mineral-based or synthetic hydraulic fluids | Solenoid operated, Manually operated | All parts steel. All operating parts hardened steel | Infinite Control | Screw in cartridge valve | N/A psi | Proportional Pressure Reducing | N/A psi | 27 Nm | N/A cm3/min | 10 ms | 1.4 at 12VDC (High watt), 0.7 at 24VDC (High watt) A | 3.5% | Side Cylinder Port | Inlet port 3, Reducing port 2, Tank port 1 | 100 De-Energized, 750 In Regulating Zone @ 300 PSI (21 BAR) cm3/min | 19-26 bar | |
| GTP02340501N | Backordered | Backordered | $249.81/each | EA | Nitrile | 3000 PSI, 210 BAR | 5 GAL/MIN, 19 L/MIN | Yes | Side Cylinder Port | N/A | 450-580 PSI, 31-40 BAR | 210 bar | Nitrile | n/a | 45-2000 SSU (6 to 420 cSt) | -30 °F | 0.17 lb | 19 L/min | 5 Gal/min | Yes | 3000 psi | 1/2" Super Coil High Watt (CCP) | 19 W | 4.1 Nm | C08-3 | Electrical | +121 °C | ISO 4406 18/16/13, SAE Class 4 | 100-400 Hz | Mineral-based or synthetic hydraulic fluids | Solenoid Operated | All parts steel. All operating parts hardened steel | n/a | Screw in cartridge valve | N/A psi | Proportional Pressure Reducing | N/A psi | 20 lb-ft | N/A cm3/min | 10 ms | 1.4 at 12VDC (High watt), 0.7 at 24VDC (High watt) A | 3.5% | Side Cylinder Port | Inlet port 3, Reducing port 2, Tank port 1 | 100 De-Energized, 750 In Regulating Zone @ 300 PSI (21 BAR) cm3/min | 450-580 psi | |
| GTP02340501V | Backordered | Backordered | $265.08/each | EA | Fluorocarbon | 3000 PSI, 210 BAR | 5 GAL/MIN, 19 L/MIN | Yes | Side Cylinder Port | N/A | 450-580 PSI, 31-40 BAR | 3000 psi | Fluorocarbon | n/a | 45-2000 SSU (6 to 420 cSt) | -26 °C | 0.17 lb | 19 L/min | 19 L/min | Yes | 210 bar | 1/2" Super Coil High Watt (CCP) | 19 W | 3 lb-ft | C08-3 | Electrical | +400 °F | ISO 4406 18/16/13, SAE Class 4 | 100-400 Hz | Mineral-based or synthetic hydraulic fluids | Solenoid Operated | All parts steel. All operating parts hardened steel | n/a | Screw in cartridge valve | N/A psi | Proportional Pressure Reducing | N/A psi | 27 Nm | N/A cm3/min | 10 ms | 1.4 at 12VDC (High watt), 0.7 at 24VDC (High watt) A | 3.5% | Side Cylinder Port | Inlet port 3, Reducing port 2, Tank port 1 | 100 De-Energized, 750 In Regulating Zone @ 300 PSI (21 BAR) cm3/min | 450-580 psi | |
| GTP02340551N | Backordered | Backordered | $297.75/each | EA | Nitrile | 3000 PSI, 210 BAR | 5 GAL/MIN, 19 L/MIN | Yes | Side Cylinder Port | Infinite Control | 450-580 PSI, 31-40 BAR | 3000 psi | Nitrile | n/a | 45-2000 SSU (6 to 420 cSt) | -34 °C | 0.08 kg | 5 Gal/min | 19 L/min | Yes | 210 bar | 1/2" Super Coil High Watt (CCP) | 19 W | 4.1 Nm | C08-3 | Electrical, Manual | +121 °C | ISO 4406 18/16/13, SAE Class 4 | 100-400 Hz | Mineral-based or synthetic hydraulic fluids | Solenoid operated, Manually operated | All parts steel. All operating parts hardened steel | Infinite Control | Screw in cartridge valve | N/A psi | Proportional Pressure Reducing | N/A psi | 27 Nm | N/A cm3/min | 10 ms | 1.4 at 12VDC (High watt), 0.7 at 24VDC (High watt) A | 3.5% | Side Cylinder Port | Inlet port 3, Reducing port 2, Tank port 1 | 100 De-Energized, 750 In Regulating Zone @ 300 PSI (21 BAR) cm3/min | 450-580 psi | |
| GTP02340551V | Backordered | Backordered | $313.49/each | EA | Fluorocarbon | 3000 PSI, 210 BAR | 5 GAL/MIN, 19 L/MIN | Yes | Side Cylinder Port | Infinite Control | 450-580 PSI, 31-40 BAR | 3000 psi | Fluorocarbon | n/a | 45-2000 SSU (6 to 420 cSt) | -26 °C | 0.08 kg | 5 Gal/min | 19 L/min | Yes | 3000 psi | 1/2" Super Coil High Watt (CCP) | 19 W | 3 lb-ft | C08-3 | Electrical, Manual | +400 °F | ISO 4406 18/16/13, SAE Class 4 | 100-400 Hz | Mineral-based or synthetic hydraulic fluids | Solenoid operated, Manually operated | All parts steel. All operating parts hardened steel | Infinite Control | Screw in cartridge valve | N/A psi | Proportional Pressure Reducing | N/A psi | 20 lb-ft | N/A cm3/min | 10 ms | 1.4 at 12VDC (High watt), 0.7 at 24VDC (High watt) A | 3.5% | Side Cylinder Port | Inlet port 3, Reducing port 2, Tank port 1 | 100 De-Energized, 750 In Regulating Zone @ 300 PSI (21 BAR) cm3/min | 31-40 bar | |
| GTP02340601N | Backordered | Backordered | $249.81/each | EA | Nitrile | 3000 PSI, 210 BAR | 5 GAL/MIN, 19 L/MIN | Yes | Side Cylinder Port | N/A | 600-740 PSI, 41-51 BAR | 3000 psi | Nitrile | n/a | 45-2000 SSU (6 to 420 cSt) | -30 °F | 0.17 lb | 19 L/min | 19 L/min | Yes | 3000 psi | 1/2" Super Coil High Watt (CCP) | 19 W | 3 lb-ft | C08-3 | Electrical | +121 °C | ISO 4406 18/16/13, SAE Class 4 | 100-400 Hz | Mineral-based or synthetic hydraulic fluids | Solenoid Operated | All parts steel. All operating parts hardened steel | n/a | Screw in cartridge valve | N/A psi | Proportional Pressure Reducing | N/A psi | 27 Nm | N/A cm3/min | 10 ms | 1.4 at 12VDC (High watt), 0.7 at 24VDC (High watt) A | 3.5% | Side Cylinder Port | Inlet port 3, Reducing port 2, Tank port 1 | 100 De-Energized, 750 In Regulating Zone @ 300 PSI (21 BAR) cm3/min | 41-51 bar | |
| GTP02340601V | Backordered | Backordered | $265.08/each | EA | Fluorocarbon | 3000 PSI, 210 BAR | 5 GAL/MIN, 19 L/MIN | Yes | Side Cylinder Port | N/A | 600-740 PSI, 41-51 BAR | 210 bar | Fluorocarbon | n/a | 45-2000 SSU (6 to 420 cSt) | -26 °C | 0.08 kg | 5 Gal/min | 5 Gal/min | Yes | 210 bar | 1/2" Super Coil High Watt (CCP) | 19 W | 3 lb-ft | C08-3 | Electrical | +400 °F | ISO 4406 18/16/13, SAE Class 4 | 100-400 Hz | Mineral-based or synthetic hydraulic fluids | Solenoid Operated | All parts steel. All operating parts hardened steel | n/a | Screw in cartridge valve | N/A psi | Proportional Pressure Reducing | N/A psi | 27 Nm | N/A cm3/min | 10 ms | 1.4 at 12VDC (High watt), 0.7 at 24VDC (High watt) A | 3.5% | Side Cylinder Port | Inlet port 3, Reducing port 2, Tank port 1 | 100 De-Energized, 750 In Regulating Zone @ 300 PSI (21 BAR) cm3/min | 41-51 bar | |
| GTP02340651N | Backordered | Backordered | $297.75/each | EA | Nitrile | 3000 PSI, 210 BAR | 5 GAL/MIN, 19 L/MIN | Yes | Side Cylinder Port | Infinite Control | 600-740 PSI, 41-51 BAR | 3000 psi | Nitrile | n/a | 45-2000 SSU (6 to 420 cSt) | -34 °C | 0.08 kg | 5 Gal/min | 5 Gal/min | Yes | 210 bar | 1/2" Super Coil High Watt (CCP) | 19 W | 3 lb-ft | C08-3 | Electrical, Manual | +250 °F | ISO 4406 18/16/13, SAE Class 4 | 100-400 Hz | Mineral-based or synthetic hydraulic fluids | Solenoid operated, Manually operated | All parts steel. All operating parts hardened steel | Infinite Control | Screw in cartridge valve | N/A psi | Proportional Pressure Reducing | N/A psi | 20 lb-ft | N/A cm3/min | 10 ms | 1.4 at 12VDC (High watt), 0.7 at 24VDC (High watt) A | 3.5% | Side Cylinder Port | Inlet port 3, Reducing port 2, Tank port 1 | 100 De-Energized, 750 In Regulating Zone @ 300 PSI (21 BAR) cm3/min | 600-740 psi | |
| GTP02340651V | Backordered | Backordered | $313.49/each | EA | Fluorocarbon | 3000 PSI, 210 BAR | 5 GAL/MIN, 19 L/MIN | Yes | Side Cylinder Port | Infinite Control | 600-740 PSI, 41-51 BAR | 210 bar | Fluorocarbon | n/a | 45-2000 SSU (6 to 420 cSt) | -15 °F | 0.08 kg | 19 L/min | 5 Gal/min | Yes | 210 bar | 1/2" Super Coil High Watt (CCP) | 19 W | 3 lb-ft | C08-3 | Electrical, Manual | +400 °F | ISO 4406 18/16/13, SAE Class 4 | 100-400 Hz | Mineral-based or synthetic hydraulic fluids | Solenoid operated, Manually operated | All parts steel. All operating parts hardened steel | Infinite Control | Screw in cartridge valve | N/A psi | Proportional Pressure Reducing | N/A psi | 27 Nm | N/A cm3/min | 10 ms | 1.4 at 12VDC (High watt), 0.7 at 24VDC (High watt) A | 3.5% | Side Cylinder Port | Inlet port 3, Reducing port 2, Tank port 1 | 100 De-Energized, 750 In Regulating Zone @ 300 PSI (21 BAR) cm3/min | 600-740 psi | |
| GTP02340901N | Backordered | Backordered | $249.81/each | EA | Nitrile | 3000 PSI, 210 BAR | 5 GAL/MIN, 19 L/MIN | Yes | Side Cylinder Port | N/A | 940-1140 PSI, 65-79 BAR | 210 bar | Nitrile | n/a | 45-2000 SSU (6 to 420 cSt) | -34 °C | 0.17 lb | 5 Gal/min | 5 Gal/min | Yes | 210 bar | 1/2" Super Coil High Watt (CCP) | 19 W | 3 lb-ft | C08-3 | Electrical | +121 °C | ISO 4406 18/16/13, SAE Class 4 | 100-400 Hz | Mineral-based or synthetic hydraulic fluids | Solenoid Operated | All parts steel. All operating parts hardened steel | n/a | Screw in cartridge valve | N/A psi | Proportional Pressure Reducing | N/A psi | 20 lb-ft | N/A cm3/min | 10 ms | 1.4 at 12VDC (High watt), 0.7 at 24VDC (High watt) A | 3.5% | Side Cylinder Port | Inlet port 3, Reducing port 2, Tank port 1 | 100 De-Energized, 750 In Regulating Zone @ 300 PSI (21 BAR) cm3/min | 940-1140 psi | |
| GTP02340901V | Backordered | Backordered | $265.08/each | EA | Fluorocarbon | 3000 PSI, 210 BAR | 5 GAL/MIN, 19 L/MIN | Yes | Side Cylinder Port | N/A | 940-1140 PSI, 65-79 BAR | 210 bar | Fluorocarbon | n/a | 45-2000 SSU (6 to 420 cSt) | -26 °C | 0.08 kg | 5 Gal/min | 19 L/min | Yes | 210 bar | 1/2" Super Coil High Watt (CCP) | 19 W | 3 lb-ft | C08-3 | Electrical | +400 °F | ISO 4406 18/16/13, SAE Class 4 | 100-400 Hz | Mineral-based or synthetic hydraulic fluids | Solenoid Operated | All parts steel. All operating parts hardened steel | n/a | Screw in cartridge valve | N/A psi | Proportional Pressure Reducing | N/A psi | 20 lb-ft | N/A cm3/min | 10 ms | 1.4 at 12VDC (High watt), 0.7 at 24VDC (High watt) A | 3.5% | Side Cylinder Port | Inlet port 3, Reducing port 2, Tank port 1 | 100 De-Energized, 750 In Regulating Zone @ 300 PSI (21 BAR) cm3/min | 65-79 bar | |
| GTP02340951N | Backordered | Backordered | $297.75/each | EA | Nitrile | 3000 PSI, 210 BAR | 5 GAL/MIN, 19 L/MIN | Yes | Side Cylinder Port | Infinite Control | 940-1140 PSI, 65-79 BAR | 210 bar | Nitrile | n/a | 45-2000 SSU (6 to 420 cSt) | -30 °F | 0.08 kg | 5 Gal/min | 5 Gal/min | Yes | 210 bar | 1/2" Super Coil High Watt (CCP) | 19 W | 3 lb-ft | C08-3 | Electrical, Manual | +121 °C | ISO 4406 18/16/13, SAE Class 4 | 100-400 Hz | Mineral-based or synthetic hydraulic fluids | Solenoid operated, Manually operated | All parts steel. All operating parts hardened steel | Infinite Control | Screw in cartridge valve | N/A psi | Proportional Pressure Reducing | N/A psi | 20 lb-ft | N/A cm3/min | 10 ms | 1.4 at 12VDC (High watt), 0.7 at 24VDC (High watt) A | 3.5% | Side Cylinder Port | Inlet port 3, Reducing port 2, Tank port 1 | 100 De-Energized, 750 In Regulating Zone @ 300 PSI (21 BAR) cm3/min | 65-79 bar | |
| GTP02341801N | Backordered | Backordered | $249.81/each | EA | Nitrile | 3000 PSI, 210 BAR | 5 GAL/MIN, 19 L/MIN | Yes | Side Cylinder Port | N/A | 1650-2100 PSI, 114-145 BAR | 3000 psi | Nitrile | n/a | 45-2000 SSU (6 to 420 cSt) | -34 °C | 0.08 kg | 5 Gal/min | 5 Gal/min | Yes | 210 bar | 1/2" Super Coil High Watt (CCP) | 19 W | 3 lb-ft | C08-3 | Electrical | +121 °C | ISO 4406 18/16/13, SAE Class 4 | 100-400 Hz | Mineral-based or synthetic hydraulic fluids | Solenoid Operated | All parts steel. All operating parts hardened steel | n/a | Screw in cartridge valve | N/A psi | Proportional Pressure Reducing | N/A psi | 20 lb-ft | N/A cm3/min | 10 ms | 1.4 at 12VDC (High watt), 0.7 at 24VDC (High watt) A | 3.5% | Side Cylinder Port | Inlet port 3, Reducing port 2, Tank port 1 | 100 De-Energized, 750 In Regulating Zone @ 300 PSI (21 BAR) cm3/min | 114-145 bar | |
| GTP02341801V | Backordered | Backordered | $265.08/each | EA | Fluorocarbon | 3000 PSI, 210 BAR | 5 GAL/MIN, 19 L/MIN | Yes | Side Cylinder Port | N/A | 1650-2100 PSI, 114-145 BAR | 3000 psi | Fluorocarbon | n/a | 45-2000 SSU (6 to 420 cSt) | -15 °F | 0.17 lb | 19 L/min | 19 L/min | Yes | 3000 psi | 1/2" Super Coil High Watt (CCP) | 19 W | 3 lb-ft | C08-3 | Electrical | +400 °F | ISO 4406 18/16/13, SAE Class 4 | 100-400 Hz | Mineral-based or synthetic hydraulic fluids | Solenoid Operated | All parts steel. All operating parts hardened steel | n/a | Screw in cartridge valve | N/A psi | Proportional Pressure Reducing | N/A psi | 27 Nm | N/A cm3/min | 10 ms | 1.4 at 12VDC (High watt), 0.7 at 24VDC (High watt) A | 3.5% | Side Cylinder Port | Inlet port 3, Reducing port 2, Tank port 1 | 100 De-Energized, 750 In Regulating Zone @ 300 PSI (21 BAR) cm3/min | 1650-2100 psi | |
| GTP02341851N | Backordered | Backordered | $297.75/each | EA | Nitrile | 3000 PSI, 210 BAR | 5 GAL/MIN, 19 L/MIN | Yes | Side Cylinder Port | Infinite Control | 1650-2100 PSI, 114-145 BAR | 210 bar | Nitrile | n/a | 45-2000 SSU (6 to 420 cSt) | -30 °F | 0.08 kg | 5 Gal/min | 5 Gal/min | Yes | 3000 psi | 1/2" Super Coil High Watt (CCP) | 19 W | 3 lb-ft | C08-3 | Electrical, Manual | +121 °C | ISO 4406 18/16/13, SAE Class 4 | 100-400 Hz | Mineral-based or synthetic hydraulic fluids | Solenoid operated, Manually operated | All parts steel. All operating parts hardened steel | Infinite Control | Screw in cartridge valve | N/A psi | Proportional Pressure Reducing | N/A psi | 20 lb-ft | N/A cm3/min | 10 ms | 1.4 at 12VDC (High watt), 0.7 at 24VDC (High watt) A | 3.5% | Side Cylinder Port | Inlet port 3, Reducing port 2, Tank port 1 | 100 De-Energized, 750 In Regulating Zone @ 300 PSI (21 BAR) cm3/min | 1650-2100 psi |
